Thread: ATC 90 Bandito Buildup

  1. #1
    Join Date
    Dec 2008
    Location
    Bonsall Ca
    --
    18

    ATC 90 Bandito Buildup

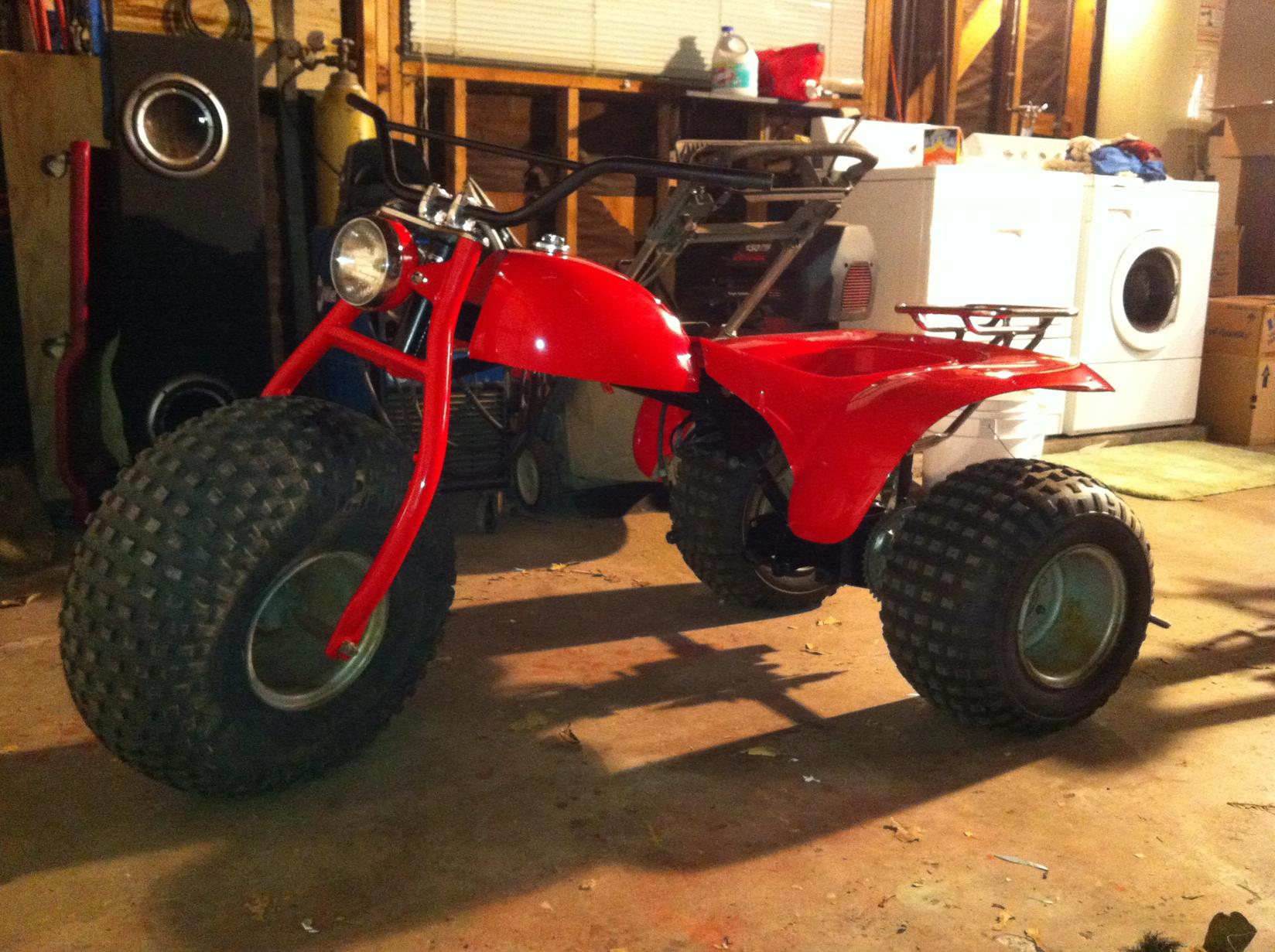

    Here is the first of the 10 requisite posts. Let me introduce mysef. I have a couple of ATC 90s and I am in the process of building one with a Bandito frame and a 108cc big bore kit. I have done the body work and paint on the frame, fenders, tank, and forks. The paint and fiberglass work on the fenders turned out awesome. I will see if i can figure out how to post some pics.Click image for larger version.

Name:	photo.jpg
Views:	761
Size:	254.3 KB
ID:	135421
    Last edited by tahiti429; 11-15-2011 at 10:08 PM. Reason: type o

  2. #2
    Join Date
    Dec 2008
    Location
    Bonsall Ca
    --
    18
    Heres what it looked like when it was donated to me. (the green one)Click image for larger version.

Name:	i Phone pics 655.jpg
Views:	314
Size:	255.0 KB
ID:	135431

  3. #3
    Join Date
    Jul 2009
    Location
    South Florida
    --
    6,722
    Looks great so far .
    78 atc 90/180cc Dickson Full Suspension
    76 ATC90/180cc Nicholson
    77 atc 90 Dickson Full Suspension
    84 KLT 110/123cc Powroll Racer from 80s
    87 atc 125m stock
    84 atc 200x Curtis Sparks
    84 atc 200x Powroll My race bike from 80's
    83 atc70/108cc Powroll blue Xmas Special
    81 atc185s HP-ATC full suspension

    Performance Shop is Open PM me for Service

    My Feedback http://www.3wheelerworld.com/showthr...ck+shortline10

  4. #4
    Join Date
    Jul 2011
    Location
    Lilly PA
    --
    1,480
    Thats one heck of a makeover! Good job, so when can we expect to see the motor in and a video?
    Just sit back and chillaxx

  5. #5
    Join Date
    Dec 2008
    Location
    Bonsall Ca
    --
    18
    Click image for larger version.

Name:	90 004.jpg
Views:	152
Size:	255.7 KB
ID:	135432Click image for larger version.

Name:	90 005.jpg
Views:	169
Size:	268.1 KB
ID:	135433Click image for larger version.

Name:	90 006.jpg
Views:	209
Size:	266.7 KB
ID:	135434Click image for larger version.

Name:	90 009.jpg
Views:	228
Size:	249.4 KB
ID:	135435Here are a few more.

  6. #6
    Join Date
    Dec 2008
    Location
    Bonsall Ca
    --
    18
    I pulled the donor motor apart and I was stoked to find it has a 54mm piston with a big dome and a web #98 cam. The cylinder looks to be in great shape as is the cam. One of the rings was broken so looks like Im going to have to find a new ring set.

  7. #7
    Join Date
    Sep 2010
    Location
    Gold Hill, OR
    --
    1,296
    Very nice! Looks incredible. Are those new tank/fenders or did you restore the ones you had? Good job! Thanks for sharing


    Joker 90
    1970 Honda US90- aquarius blue
    1981 Yamaha YT125
    1986 Yamaha Big Wheel 80
    1986 Kawasaki Tecate KXT500
    1987 Kawasaki KXT250B2
    2005 Yamaha YFZ450

  8. #8
    Join Date
    Dec 2008
    Location
    Bonsall Ca
    --
    18
    Belive it or not, they are the green ones. The fenders were in good shape for the most part. No major cracks, just badly weathered. I filled some holes someone had drilled for snaps, i guess for vinyl fender covers. Kinda like a bra on the front of a car I guess. The tank is actually a 110 tank that had a hole that i welded up and bondoed. It turned out alot better than I thought it would.

  9. #9
    Join Date
    Dec 2008
    Location
    Bonsall Ca
    --
    18
    I bought the Bandito frame from Lardog. He helped me set up the rear axle with new bearings, seals and brake shoes. Couldn't have done it without him.

  10. #10
    Join Date
    Dec 2008
    Location
    Bonsall Ca
    --
    18
    Here is a pic of me at about 8. Damn that 110 was cherry.Click image for larger version.

Name:	110.jpg
Views:	158
Size:	48.6 KB
ID:	135545

  11. #11
    Join Date
    Dec 2008
    Location
    Bonsall Ca
    --
    18
    Only 3 more.

  12. #12
    Join Date
    Dec 2008
    Location
    Bonsall Ca
    --
    18
    Sucks the spamers and scammers had to ruin it for us new posters.

  13. #13
    Join Date
    Dec 2008
    Location
    Bonsall Ca
    --
    18
    Did I mention that I joined 3 years ago.

  14. #14
    chuckiedog04's Avatar
    chuckiedog04 is offline At The Back Of The Pack Arm chair racerAt the back of the pack
    Join Date
    Mar 2011
    Location
    minnesota
    --
    369
    good job! looking very good. im in the proccess of bringing an 1977 Atc 90 back to life, though im not going to do a build like you!

  15. #15
    Join Date
    Dec 2008
    Location
    Bonsall Ca
    --
    18
    Thanks. Are you going to build yours stock?
