Results 1 to 4 of 4

Thread: anybody own a v-dub thing

  1. #1
    Join Date
    Aug 2010
    Location
    Centerview, MO
    --
    479

    anybody own a v-dub thing

    if so leys see some pics

    also im getting ready to buy one and will post pics when i get it hme its a 1973

  2. #2
    bigbadktm's Avatar
    bigbadktm is offline At The Back Of The Pack Arm chair racerAt the back of the pack
    Join Date
    May 2010
    Location
    San Diego, CA
    --
    437
    don't own one but have always been a fan of them, can't wait to see some pics of yours
    1985 250R
    FMF pipe and silencer, K&N, 4" extended swingarm

  3. #3
    atcrider1's Avatar
    atcrider1 is offline At The Back Of The Pack Arm chair racerAt the back of the pack
    Join Date
    Mar 2009
    Location
    Montrose MI
    --
    400

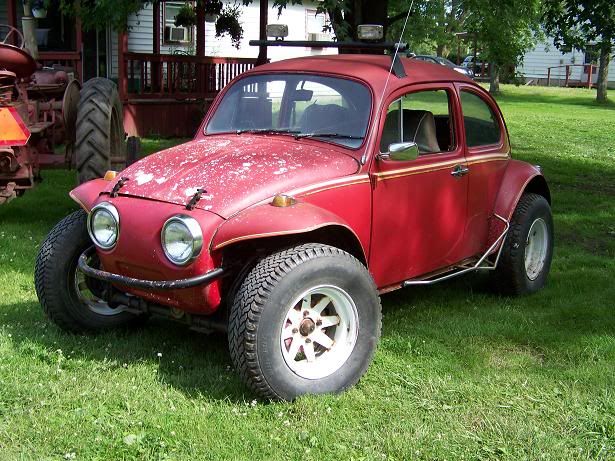

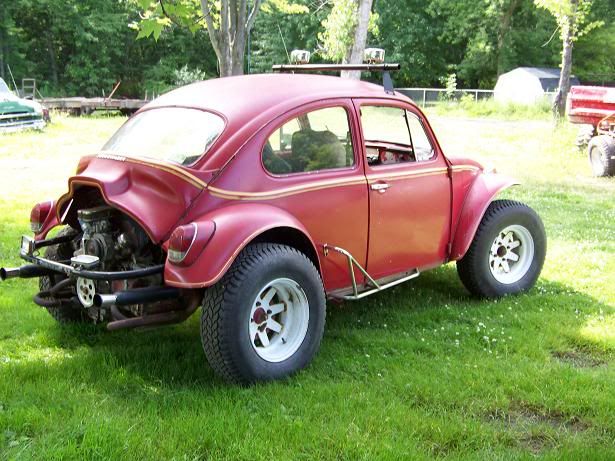

    this is my hot rod, its a 69 vw with a baja kit on it.

    it sat in my cousing back yard for almost 10 years,i got home and it fired right up with no problems at all.











    " I gotz the 8-track player mounted to my Oly, it's pretty sweet for trail side dance parties....."
    -Uller God

  4. #4
    Join Date
    Dec 2004
    Location
    Baltimore, MD
    --
    6,088
    73 and 74 things were different. 73 had a gas heater, no provisions for heat on it's original fan shroud and no intake covers on either side of the rear quarter panels. If the fan shroud has blocked off air channels for air circulation for heater boxes, make sure to take off money for that, it's not original. If the gas heater isn't working or is missing, take off money for that. The thing also had unique suspension pieces, it uses a type 1 geabox, but uses type 2 cv joints and also it had a vw bus front suspension. Your thing should have reinforcing bars for the front suspension, from the factory and it should have a special sump protection grid assembly consisting of a left and right grid underneath the engine, but clearing the oil strainer as well as a front connecting piece. Can't remember if it had a 4th piece or not. If your thing doesn't have these, subtract money as well. The front suspension reinforcement pieces are easy to get as well as the sump protection pieces. The 73 only fan shroud is hard to get and is a favorite of vw performance and dunebuggy enthusiasts. Gas heater parts can vary and are available, but seem to be hit or miss on thier availability.
