Swingarm porn

[manbearpig]

ive come across a few different swingarms in the past few months, and so far i can only identify 3

ALL of these came from 1982 honda 250R ATCs

im looking for information on all of these swingarms and the companies that made them. please if you have ANYTHING useful to contribute, do.

starting off with the ones i have identified:

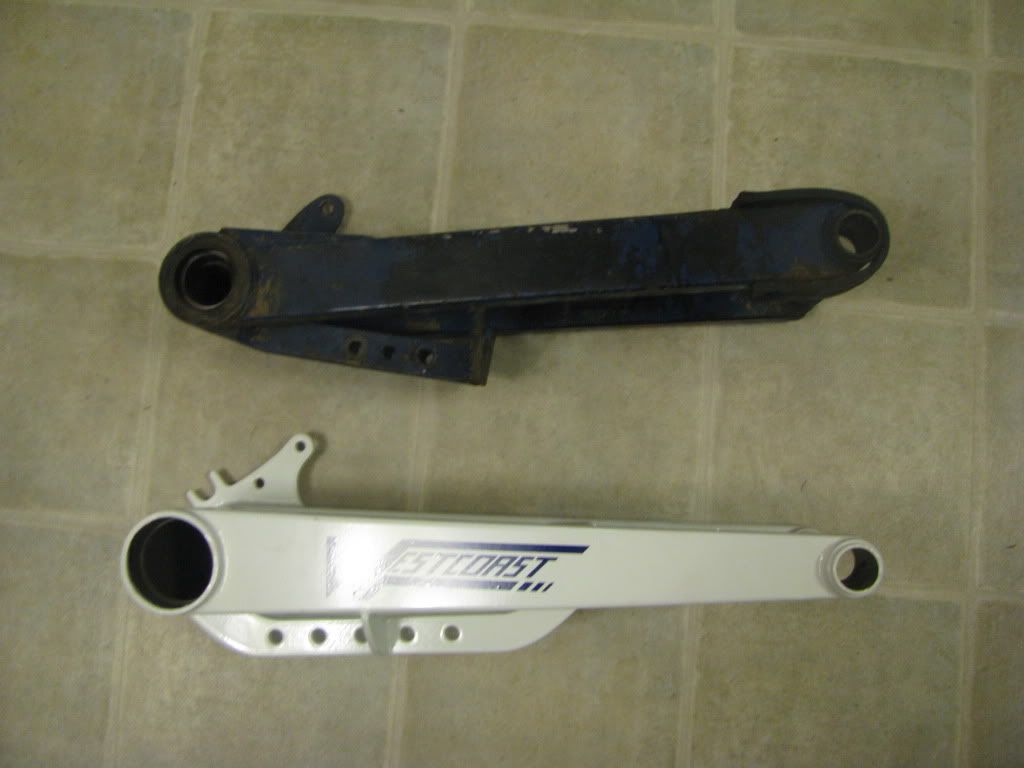

this one is a Westcoast, obviously



this one is a Disco (thanks to triztunes for the ID)





this one is a DICO (thanks to Courtdar for the ID)








***now for the yet unidentified swingarms***

this looks very similar to an aftermarket suspension setup swingarm for a 185/200S, but it is longer and has a brake stay for an 82R caliper. it is +2 1/2 over stock 82R




and now last, and least, this beat up lil guy

notice the stretched bearing carrier. some hard miles haha







again, identification any and all information about the above swingarms is what im seeking.

should have a cal fab to add to this collection in a day or so

[motoman1012002]

The last arm is a durablue

[manbearpig]

very interesting. ive seen a durablu swinger for 1st gen 250Rs and it didnt look the same. different model? what else did durablu make, besides axles?

[ForeverThreeWhe]

http://www.3wheelerworld.com/showthr...p+i.d+swingarm

Theres more pics of the Durablue there.

[shortline10]

The blue tubular one is possibly a Champion . I ran one back in the day racing MX and bent it up pretty good .

[manbearpig]

http://www.3wheelerworld.com/showthr...p+i.d+swingarm

Theres more pics of the Durablue there.

very, VERY similar, though the front cross bar is different. look closely. does that make mine an early/late durablue?

[manbearpig]

The blue tubular one is possibly a Champion . I ran one back in the day racing MX and bent it up pretty good .

hmmm cant seem to find any pictures of champion swingarms for the 250R. did your champion look like the Tecate 3 champion swinger?

hopefully tomorrow evening ill have a PK racing swinger and a shiny new calfab to show off.

btw, dont EVER move to southern CA. it sucks here haha

[atc007]

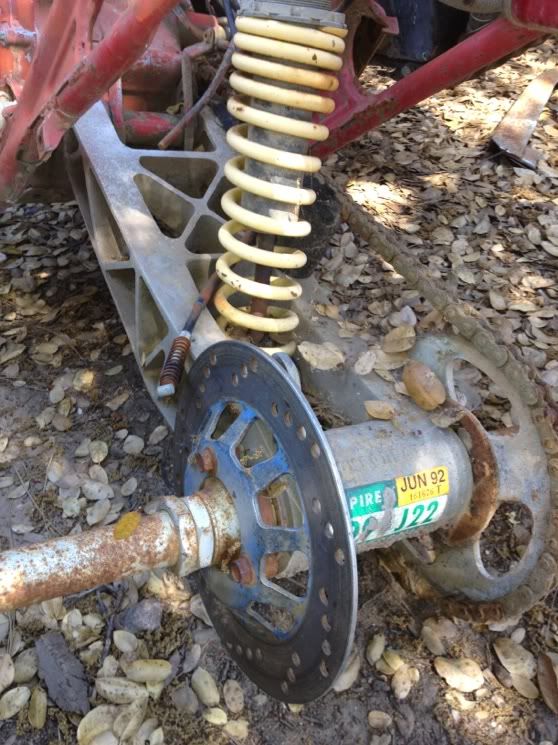

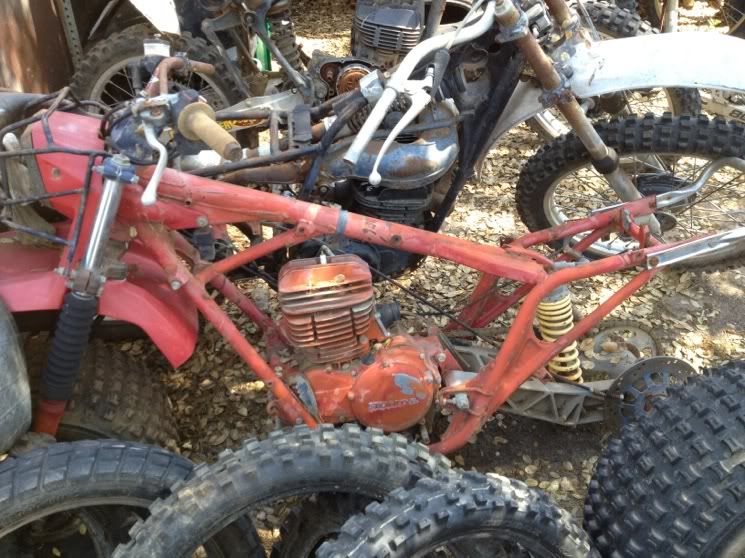

And when these are all figured out,,,on too THIS one : )

[Yamaha_Rules69]

Wow atc007, I have seen all listed above at some point in life, but never seen one like the one you showed there. That is really unique!

[HONDA_ATC_FREAK]

i would get that ^thing^ out of the dirt and inside where it belongs i have no idea what it is but it's got to be EXTREAMLY RARE just looking at it.

[atc007]

Me too,,not mine : )

[HONDA_ATC_FREAK]

ok bill lol i just couldn't believe that you would do that, i thought it was weird should a figured.

[stroberts22]

I've seen one other swingarm like this one and they said it was a terrycable swingarm. Enginerd has it now. Shawn 72 did the leg work on it and contacted the man that had them built. He said they were engineered and buit by a company that made helicopter parts if I remember the story correctly. I guess that is the reason for the complex design.

[HONDA_ATC_FREAK]

here ya go bill this is the terrycable
link http://www.3wheelerworld.com/showthr...nger-1st-gen.?

[stroberts22]

Here some of my 1st gen swingarms that I have had.
