My hybrid cr125 powered 200x Thread updated!!

[mart]

Gday fellas thought id post a link to my new build im startin over here in aus,This is one trike i have always wanted to build after my uncle built two of these him and dad raced them for years so heres the link anyways no much to write again on here cheers guys hope you like it.

[daniel_250r]

is that piece of metal welded to the countershaft? :s

[ezmoney1979]

I like your pullstart idea. It should fire up like pulling on a 110, maybe easier? Should be a very fun, lightweight machine!

[mart]

Thanks guys, no the jig is not welded to shaft mate it slides over the countershaft.
Yeh itll be real easy to pull i think should be a fast little bugger. These cr's are rated at around 34 hp there torque curve would be somewhat small though im thinking lol

[stevensj13]

Nice! I've got a 200x roller I picked up from a buddy that I was trying to think of what to do with. I wanna see how this thing turns out, I might do something similar! Love it.

[daniel_250r]

Oh ok i see, very cool i wonder what that thing would pull over like i remember my buddies yz125 being very tough to kick i bet it will be an awesome woods machine

[Tri-Z 250]

I always wondered about this combo as many may have. 1gen frame with the single down tube up front makes for more room. The pipe and mounting + kicker issues keeps me at bay. I'll be watching this build fo-sure, keep us posted, thanks fer sharing.

[mart]

Thanks guys.The pull start i dont think will be very hard to pull over.The down tube im tossing up jigging up the frame and cutting out the down tube and replacing it with a custom one for clearance for pipe,That or milling a kinda alloy wedge to come off the cylinder to send the exhaust spigot a different way like out to the side ill have to see.
Other question is has anyone attempted usd forks on one of these x's i wanna do it just alittle worried about the frame and how they are pressed together and welded just for strength thats all but ill sort that out when i get to it.Its not for mx or anything i only ride sand so probably not worth it well see.cheers guys ill start adding photos to this thread as well.Might have some more tonight.

[mart]

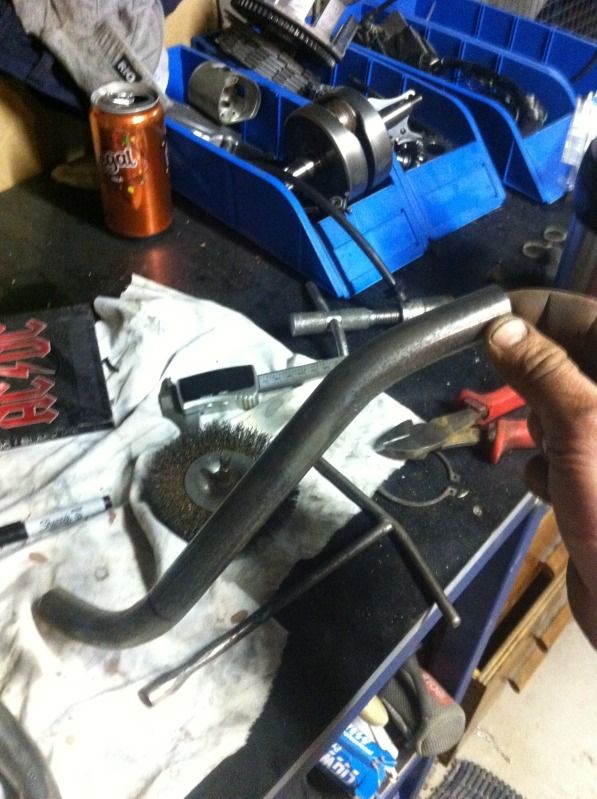

Got a little extra done tonight i decided to change the downtube, i bent up some new front frame rails heres where im at fellas.

[stevensj13]

Got a little extra done tonight i decided to change the downtube, i bent up some new front frame rails heres where im at fellas.

I like it! Those are gonna look good on that frame. Honestly I think thats the easiest solution 2nd to cutting a 3 inch section out of the down tube and putting a 2 inch long section of 3 inch wide steel pipe in its place, and running the exhaust header through that.

[mart]

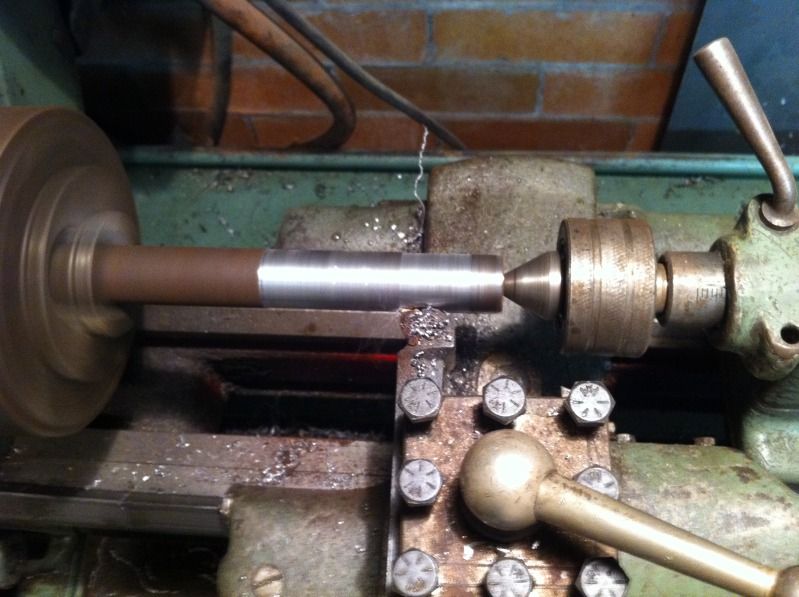

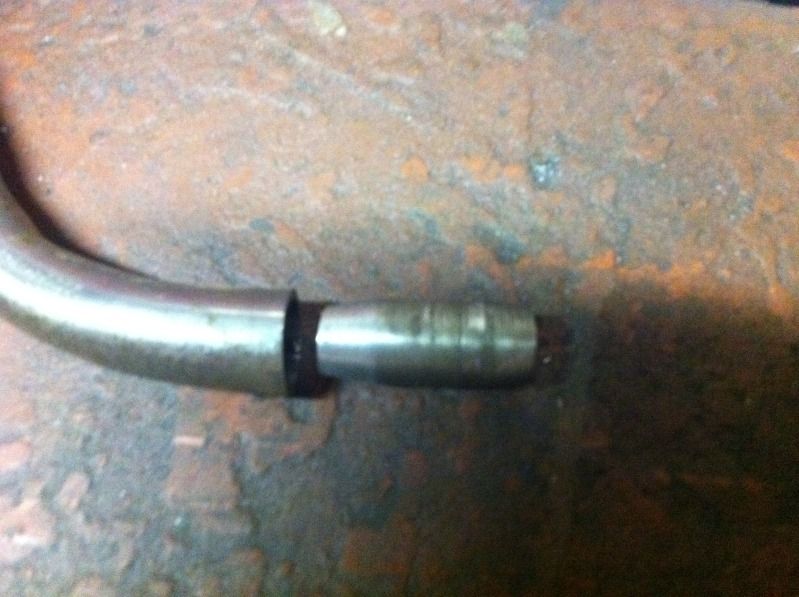

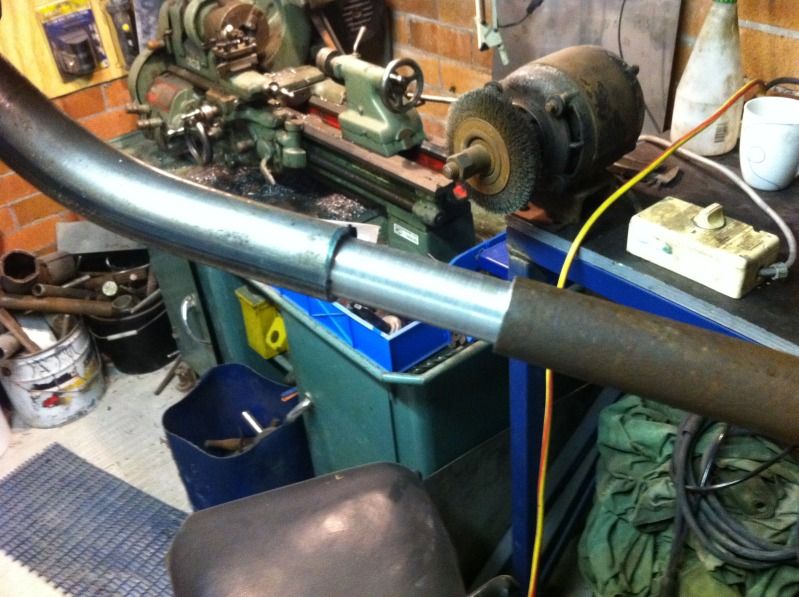

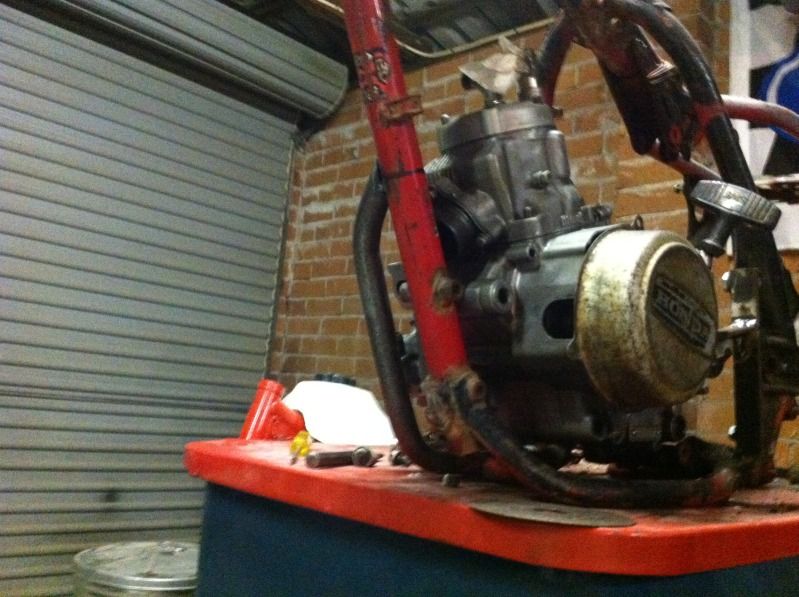

Well got abit more done tonight bent up new frame rail cut a peice of frame out and sectioned it into position.I also turned up a peice of rod to dowel the join at the bottom.Heres a few more pics.

[mart]

This is the link to page 3 of the build on our aussie 3wheel forum i hope its not a problem just linking you guys to it(Way to much to rewrite) if its not allwoed im sorry ill start posting it on here aswell.
Ive got heaps more done getting alot closer now enjoy:
http://www.ozatv.com/forum/viewtopic...20239&start=50
