Thread: honda atc 200 but which one?

  1. #16
    Join Date
    Aug 2008
    Location
    MN
    --
    3,263
    Mine is stamped on the tube also, so odd his isn't on either?

    The shaft drive isn't that bad as far as taking apart. Let me give you a couple tips that i have discovered on these, like i said i had mine out twice, and a buddies out like three times (he was dang hard on it but has since learned through his pocket), and another one i tore out to.

    All you have to do for removal is loosen the front band, the motor side, of the rubber boot for the driveshaft. The knuckle/universal joint will pull right off as you pull the motor out of the frame, its not latched or otherwise its free floating across the two shaft ends and its kept aligned with a spring thats on the driveshaft.

    Now re-assembly is a pain merely because of that dang spring, it won't compress easily allowing the motor to move back far enough so the motor clears the frame in the front and drops down into place. Here is how i have got it to work twice now... Loosen the back clamp of the driveshaft boot and slide that back onto the driveshaft housing, force the boot back as far as it goes, you can get it slide back at least half its length to give you some more hand room in there. Then bring the motor in, you pull it out and put it in from the left side by tipping the top end to the left side and then just rolling it out and pull it, towards the side with the recoil and sub-trans. When you put the motor back in get it nearly all the way back in, have the knuckle/universal joint on the motors output shaft, line it up with the driveshaft and get it started. Now to get the spring to compress and the motor to slide back in the rest of the way here is how i do it faster now. Put the rear end up on jackstands, then turn the wheels by hand to rotate the driveshaft, it will spin around until everything lines up and the weight of the motor will just make it drop into place. Then start putting the bolts back in, i start with the hanger bolt and the top rear bolt to get stuff lined up.

    I wont tell you its easy, its a real pain on the shaft drives, but its not as bad as breaking a stud! Got access to a impact wrench? If you do i would put it on the head of that lower motor bolt and away till you get it to turn, once it turns then it should be easier to tap it out. You might even have to alternate between spinning it and beating on it.
    ---------------------------------------------------------
    1984 Honda ATC200ES "Big Red"
    1982 ATC200E "Hondie"
    1988 TRX300FW "Project Quad" Still in progress....

  2. #17
    Join Date
    Mar 2013
    Location
    Minnesota
    --
    441
    Looks like a 200es defiantly not a 200x
    ~~ATC's Currently Owned~~
    1983 Honda 200x - Main ATC
    1985 Honda 200x - Parts Bike

    ~~ATC's Previously Owned~~
    1983 Honda 250R
    1984 Honda 200X
    1979 Honda 110
    1983 Honda 125M
    1984 Honda 200
    1983 Kawasaki klt 200a
    1986 Honda 200s

    ~~Other Toys Owned~~
    2012 Pro R 800
    1993 Polaris Indy 500
    2004 Yamaha 125
    1990 Thunder Kart - 250CC
    2001 Yamaha Blaster - 240kit, aftermarket exhaust, power reeds

  3. #18
    Join Date
    Aug 2013
    Location
    United States
    --
    60
    i will brush the other side today. if i do manage to get the engine off what are some maintenance things i should do to it while its out?

  4. #19
    Join Date
    Aug 2008
    Location
    MN
    --
    3,263
    As for maintenance, if you buy a gasket kit i would take off the right side engine cover as well, take off the centrifugal oil filter as they call it, its a cover over the clutch and it slings the oil around inside and builds up crud. It can be really nasty in there because most people don't do the maintenance on it. All you need is a right cover gasket and a gasket for that cover. Plus you can clean it all out good and get the grime settled to the bottom of the cover and case on that side.

    On the left side i would change the oil seal for the crankshaft, where the recoil basket sits in the left cover. That will leak eventually... LOL

    Since your taking the top end apart, replace the base gasket, the gasket under the cylinder to the bottom end, that sucker always seems to leak on me if i take the head off and not the cylinder, its like after loosening it up retorque and it still doesn't seal.

    Depending on how much your willing to spend, i would do a timing chain and guide/tensioner bands as well since you have it apart. Better to do it all at once, sure it costs more but then you wont be buying more gaskets and pulling it apart again down the road!

    Overall, clean, clean, clean. Thats what i do when i have to open one up. So much easier to do when the motor is on the bench!
    ---------------------------------------------------------
    1984 Honda ATC200ES "Big Red"
    1982 ATC200E "Hondie"
    1988 TRX300FW "Project Quad" Still in progress....

  5. #20
    Join Date
    Aug 2013
    Location
    United States
    --
    60
    thanks kb i hope to do all of those, really helpful. If you dont mind me wasting more of your time whats a high low estimate on all those parts. cannot get this bolt out though. tried hitting it on the bolt headside with a torque wrench to loosen it up but it will not, and tried a punch a bunch of times and it does not budge. tempted to cut it but i dont even know if i could get in there to be able to cut it even. really frustrating lil sonofagun

    tried heat as well but im afraid to damage something else, i think im going to drill the head off and try to dremel cut the end off. then punch or drill out the rest when its off the frame
    Last edited by MisterRoboto; 08-26-2013 at 06:34 PM.

  6. #21
    Join Date
    Aug 2008
    Location
    MN
    --
    3,263
    Oh i would say top end is around $200 to get all the parts and shipping... Just an estimate, you can shop around and find some of it cheaper. eBay, DR ATV, and G&H Discount ATV, are the three places i usually look for a quick new parts buy. There is bikebandit also but the last i tried to order from them they didnt have the 200ES gasket kit or the timing chain tensioner.

    Damn, its probably seized up where it passes through the aluminum of the motor then. The only thing you have to worry about applying heat on that bottom bolt is that it crosses the split in the case, and the last thing you want to do is have to split the case to replace a cooked gasket. That lower bolt only has a metal tang on either side of the motors case, the entire length of the bolt is in the motors aluminum case. The problem is cutting it off you will still have to drill both sides so that the ends are inside of the metal tang off the frame to clear them. If you go that route then you can soak in PB Blaster once the motor is out to get it out of the motor.
    ---------------------------------------------------------
    1984 Honda ATC200ES "Big Red"
    1982 ATC200E "Hondie"
    1988 TRX300FW "Project Quad" Still in progress....

  7. #22
    Join Date
    Apr 2011
    Location
    Connecticut
    --
    1,605
    Your trike should be an 84 big red The engine S/N verifies it

    Quote Originally Posted by MisterRoboto View Post
    i just got this atc today

    cant seem to find a vin on the neck but i found this serial on the engine




    1984 Honda ATC200ES Big Red,

    Frame number JH3TB0554EC300001~
    Engine number TB05E-6000001~
    Engine type 4 stroke, Air cooled
    Displacement 192 cc
    Bore x Stroke 65 x 57.8 mm
    Compression ratio 7.8 to 1
    Compression 142 - 170 psi
    Transmission speeds 5 speed with dual range & Reverse
    Clutch Type Automatic
    Oil Capacity 1.43 Qt
    Carburetion 22 mm Keihin
    Starting system Electric with recoil backup
    Fuel capacity 3gal with .03 reserve
    Wheelbase 48.4 in.
    Overall Length 72.8 in.
    Overall Width 42.1 in.
    Ground Clearance 5.9 in.
    Seat height 27 in.
    Front tire 25 x 12 x 9
    Rear tires 25 x 12 x 9
    Front suspension Telescopic Forks
    Rear suspension none
    Front brake Drum
    Rear brake Drum
    Final drive Shaft
    Dry weight 375 lbs
    Approx. retail new $1,848.00

  8. #23
    Join Date
    Oct 2011
    Location
    Burgessville ON
    --
    22
    looks like a 200m

  9. #24
    Join Date
    Sep 2013
    Location
    USA
    --
    4
    Well the container looks, like it came off an D design and the forks are from a 100M design. If the
    tricycle, is base motivated the motor and structure are from a 170ES design.

  10. #25
    Join Date
    Aug 2013
    Location
    United States
    --
    60
    got around to trying to get the engine out again over the last week or so and i think i have the bolts drilled out enough on each side of the tabs but its still hard to tell for sure. but damn this thing being a pain in the ass to get out

  11. #26
    Join Date
    Aug 2013
    Location
    United States
    --
    60

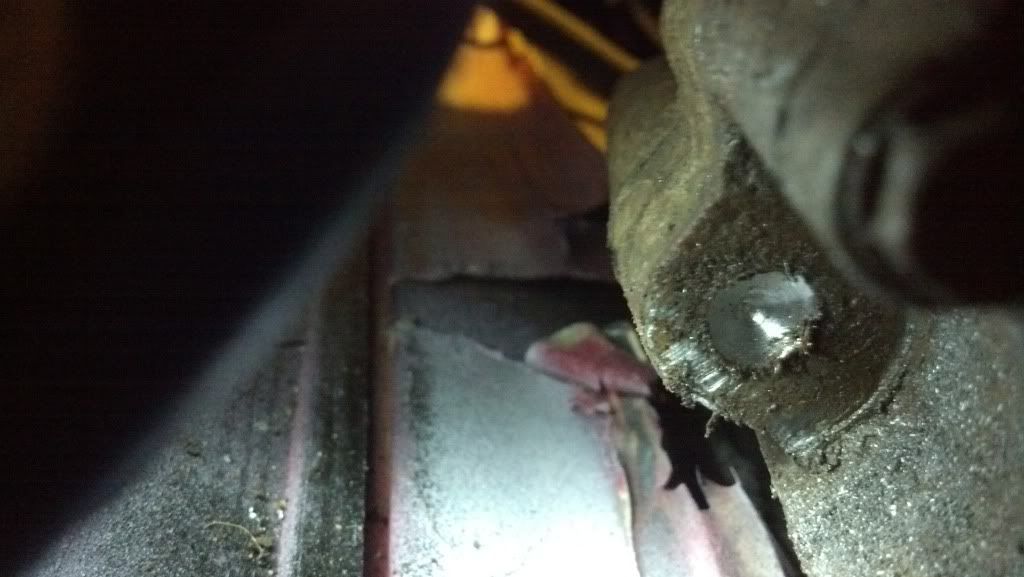

    finally got the bolt ends drilled enough to pry the engine out heres whats left of the bolt ends... wish me luck with that -.-


  12. #27
    Join Date
    Aug 2013
    Location
    United States
    --
    60

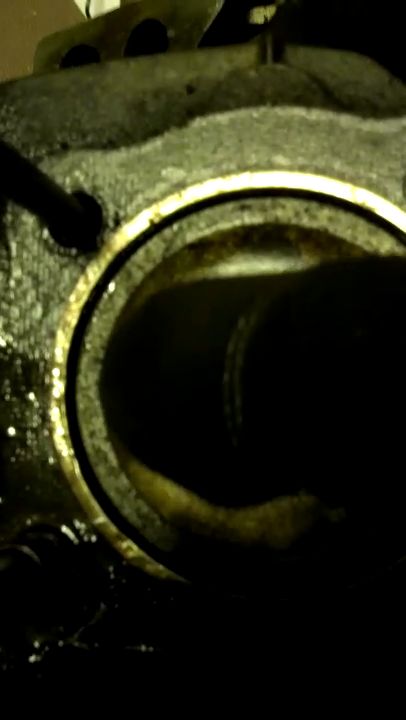

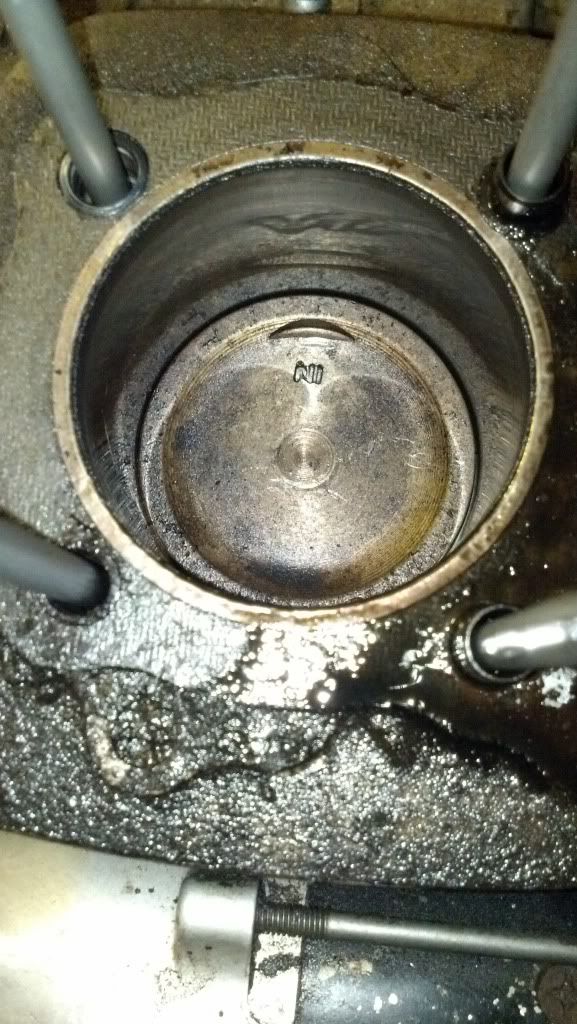

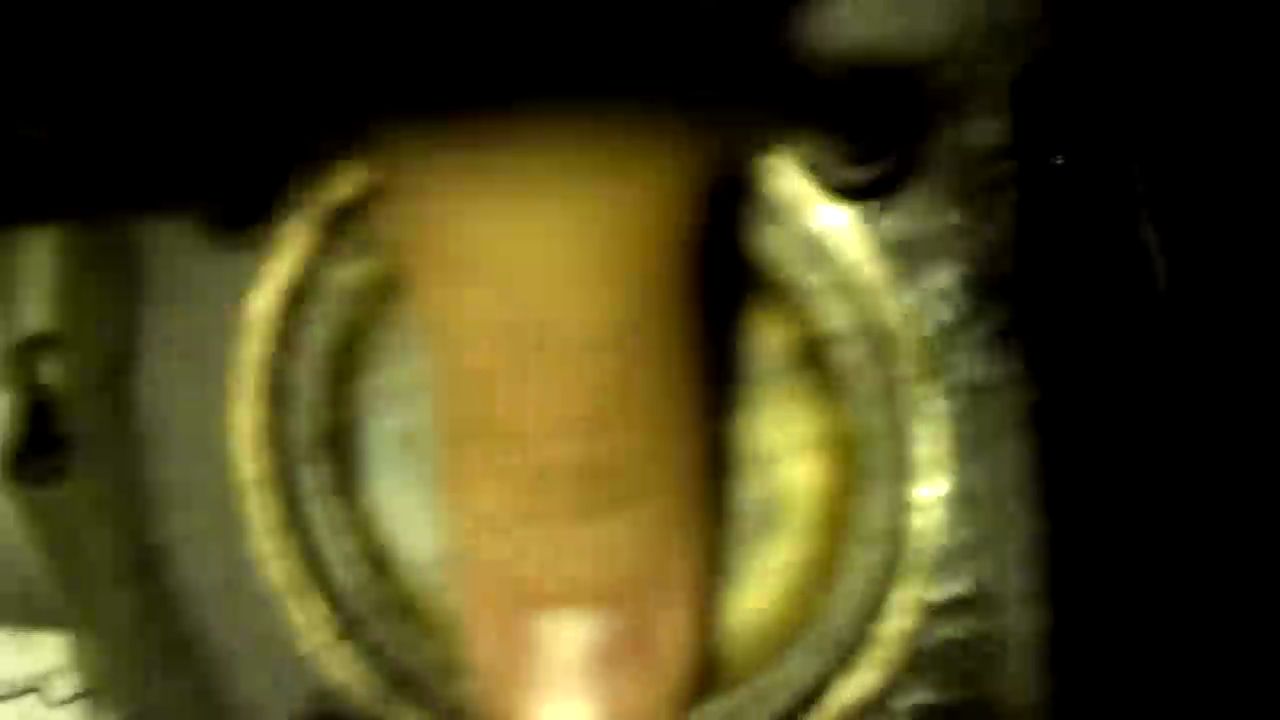

    took off the head and it looks like it may have been just gasket failure? the cylinder looks good and doesnt seem to have much play side to side

    EDIT: forgot photoshop doesnt show that these 2 are videos when embeded








    Last edited by MisterRoboto; 01-22-2014 at 10:40 PM.

  13. #28
    Join Date
    Aug 2008
    Location
    MN
    --
    3,263
    Doesnt look to bad, these always leak oil as the o-ring fails on the right rear head dowel. Thats the oil galley up to the head. Once that starts leaking the oil just seeps around everywhere. bore doesn't look too bad in the pics at least. Timing chain guides arent that bad either really.
    ---------------------------------------------------------
    1984 Honda ATC200ES "Big Red"
    1982 ATC200E "Hondie"
    1988 TRX300FW "Project Quad" Still in progress....

  14. #29
    Join Date
    Aug 2013
    Location
    United States
    --
    60
    ya reason i wanted head off was cause it seems like there was little compression when i got it. im tryin to get a street bike soon so dont have much money to throw at it as usual. im thinkin bout getting a top end gasket kit and fixing up the wiring and see what happens.

    what do i look for when inspecting the chain guides? they look good but im just an amatuer. will get more pics up lil later or tomorrow
    Last edited by MisterRoboto; 01-23-2014 at 01:51 AM.

  15. #30
    Join Date
    Aug 2008
    Location
    MN
    --
    3,263
    Main thing with the timing chain is if they are less than 50% thickness where the wear marks are i replace them, but also the chain needs to be in good shape. When you had it running did the chain rattle from being sloppy or was it quiet? Usually the chain stretches and the tensioner can't keep it tight anymore before the guides are shot.
    ---------------------------------------------------------
    1984 Honda ATC200ES "Big Red"
    1982 ATC200E "Hondie"
    1988 TRX300FW "Project Quad" Still in progress....
