Thread: 1984 ATC 200M....Just purchased

  1. 09-30-2015, 08:16 AM #1
    dwil4
    dwil4 is offline New to the board Arm chair racerNew to the board
    Join Date
    Sep 2015
    Location
    Western most part of N.C.
    --
    53

    1984 ATC 200M....Just purchased

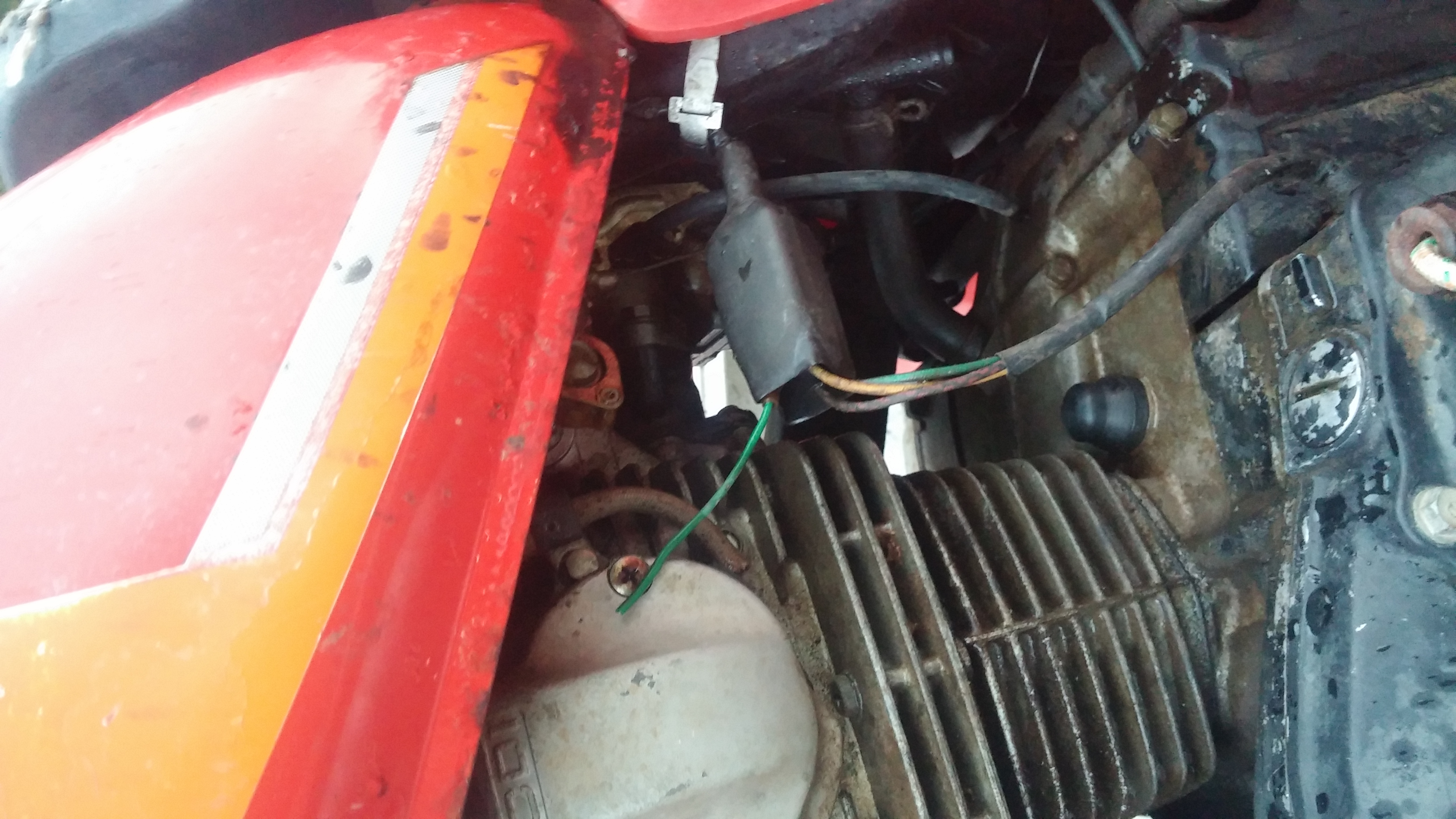

    I picked this ride up for $125 yesterday. The guy said the chain came off with him one day and he parked it and hadn't fooled with it since. Said it has been sitting six or seven years. The tank has some pinholes rusted in it in the lower section nearest seat. I have not torn into it yet but it needs a few small things like a brake lever, probably a new chain, some paint in a few places to freshen up things and obviously I'll put new brake shoes on it. All in all it looks to be in my opinion in pretty good shape. No doubt it was worth the money I spent and the best part is when I shot a little gas into the cylinder it fired right up. I will be needing some help on this as I go along starting with some wiring. If you look in the second picture there is a green wire that's obviously a ground wire and he said it wouldn't crank unless that was plugged in and that the neutral light stays on all the time. So any suggestions as to what I need to do to correct this? Are there any wiring diagrams on this site? Thanks in advance to any and all help
    Attached Thumbnails Attached Thumbnails Click image for larger version.  Name: 0929151849.jpg  Views: 135  Size: 3.00 MB  ID: 222230   Click image for larger version.  Name: 0929151850.jpg  Views: 83  Size: 2.87 MB  ID: 222231
    Last edited by dwil4; 09-30-2015 at 08:23 AM.
    Reply With Quote Reply With Quote
  2. 09-30-2015, 08:19 AM #2
    dwil4
    dwil4 is offline New to the board Arm chair racerNew to the board
    Join Date
    Sep 2015
    Location
    Western most part of N.C.
    --
    53
    Sorry for the sideways pic I don't know why it posted that way. Maybe one of the mods can fix it?
    Reply With Quote Reply With Quote
  3. 09-30-2015, 10:59 AM #3
    86125m
    86125m is offline Got The Holeshot Arm chair racerJust too addicted
    Join Date
    Jan 2014
    Location
    La
    --
    1,062
    Looks like a pretty good bike. I know I love my 200m.
    Reply With Quote Reply With Quote
  4. 09-30-2015, 11:27 AM #4
    atctim's Avatar
    atctim
    atctim is offline Administrator The day begins with 3WW
    Join Date
    Feb 2004
    Location
    Tionesta, PA
    --
    5,747
    Do a simple google search of "ATC200M wiring" and you will find the schematic. All green wires, as shown in your picture are ground on any Honda trike. Just trace out where the wires come from and go to - it's pretty simple. Pull the tank off of the bike for a bird's eye view of all the wiring.
    RIP - Yamahondaman!! You will never be forgotten!
    RIP - Sam Brehm!! Gone but NEVER forgotten!
    RIP - Sandpuppi101 - You will live on in my mind - I miss you friend!
    Reply With Quote Reply With Quote
  5. 09-30-2015, 04:43 PM #5
    coolpool's Avatar
    coolpool
    coolpool is offline Power User Teaching quads a lesson
    Join Date
    Jun 2010
    Location
    Cold Lake, Alberta, Canada
    --
    3,019
    Welcome. Lots of info on coating tanks. Fairly straightforward if you adhere to the instructions to a tee. Sounds like your Neutral swith is stuck in the grounded position.
    Trikes
    1970/71 US 90 (Aquarius Blue)
    1970/71 US 90 (Future Project)
    1972/73 US 90 Camo Project (110 Big Bore)
    1972/73 US 90 Green
    1982 ATC 70
    1983 ATC 70 (Ladybug)
    1973 ATC 70

    1965 Marketeer 3 Wheel Golf Cart with 1986 Honda 250 drivetrain

    TF 2015

    Other
    1983 Honda Z50

    Feedback http://www.3wheelerworld.com/showthr...ck-for-coopool
    http://www.3wheelerworld.com/showthr...k-for-coolpool
    Reply With Quote Reply With Quote
  6. 09-30-2015, 10:17 PM #6
    dwil4
    dwil4 is offline New to the board Arm chair racerNew to the board
    Join Date
    Sep 2015
    Location
    Western most part of N.C.
    --
    53
    The wire that I have my finger on coming from behind the sprocket cover was a green wire that was pulled apart and I hooked it and the green wire that was grounded to the CDI cover in the 1st pics together as I thought that's prob where it went???
    Attached Thumbnails Attached Thumbnails Click image for larger version.  Name: 0930152143c.jpg  Views: 52  Size: 2.65 MB  ID: 222238
    Reply With Quote Reply With Quote
  7. 10-01-2015, 02:48 PM #7
    dwil4
    dwil4 is offline New to the board Arm chair racerNew to the board
    Join Date
    Sep 2015
    Location
    Western most part of N.C.
    --
    53
    Help...Am I right in my last post?
    Reply With Quote Reply With Quote
  8. 10-02-2015, 10:50 PM #8
    dwil4
    dwil4 is offline New to the board Arm chair racerNew to the board
    Join Date
    Sep 2015
    Location
    Western most part of N.C.
    --
    53
    All the wiring diagrams I have saw are confusing as in it will have a wire labeled G/R but it doesn't have G/R in the chart to right of the page. Any help?? In the following pic u see a green wire coming from the sprocket area,,,,when I hooked that green wire that was grounded to the cdi cover to that wire the neutral light stopped working??
    Reply With Quote Reply With Quote
  9. 10-03-2015, 07:42 AM #9
    BarnBoy
    BarnBoy is offline Just Too Addicted Arm chair racerJust too addicted
    Join Date
    Jun 2015
    Location
    Oklahoma
    --
    732
    [QUOTE=dwil4;1385185]All the wiring diagrams I have saw are confusing as in it will have a wire labeled G/R but it doesn't have G/R in the chart to right of the page. Any help?? In the following pic u see a green wire coming from the sprocket area,,,,when I hooked that green wire that was grounded to the cdi cover to that wire the neutral light stopped working??[/

    That green wire is for the neutral indicator. On my 200m the switch is broken so the neutral light is always on. Is your bike in neutral? If it is in gear then maybe that is why the light seems to not work. Nice bike by the way.
    1984 HONDA ATC200M - OG, mid-restoration
    1981 HONDA ATC200 - future build
    1981 HONDA ATC185S - parts
    1984 ATC200X - roller, future build
    1984 Honda ATC250r - in a million pieces- ISO grab bar, PM if you have one

    Da velder
    _______________________________________________
    Feedback:
    http://www.3wheelerworld.com/showthr...ck-for-Barnboy
    Reply With Quote Reply With Quote
  10. 10-03-2015, 11:25 AM #10
    dwil4
    dwil4 is offline New to the board Arm chair racerNew to the board
    Join Date
    Sep 2015
    Location
    Western most part of N.C.
    --
    53
    Yes it was. I'll try again but I am confused by the diagrams I have saw. You can see there is a G/R coming from the neutral switch and the starter button but there is no G/R in the color code chart. There also is no Y/B in the chart. I can't assume it's green and red because that wire is not green and red
    Attached Thumbnails Attached Thumbnails Click image for larger version.  Name: ATC200Mx84.jpg  Views: 196  Size: 441.1 KB  ID: 222310
    Reply With Quote Reply With Quote
  11. 10-04-2015, 05:28 PM #11
    dwil4
    dwil4 is offline New to the board Arm chair racerNew to the board
    Join Date
    Sep 2015
    Location
    Western most part of N.C.
    --
    53
    bump...............
    Reply With Quote Reply With Quote
  12. 10-06-2015, 10:22 AM #12
    dwil4
    dwil4 is offline New to the board Arm chair racerNew to the board
    Join Date
    Sep 2015
    Location
    Western most part of N.C.
    --
    53
    Any comments on that wiring diagram?
    Reply With Quote Reply With Quote
  13. 10-06-2015, 07:05 PM #13
    BarnBoy
    BarnBoy is offline Just Too Addicted Arm chair racerJust too addicted
    Join Date
    Jun 2015
    Location
    Oklahoma
    --
    732
    Quote Originally Posted by dwil4 View Post
    Yes it was. I'll try again but I am confused by the diagrams I have saw. You can see there is a G/R coming from the neutral switch and the starter button but there is no G/R in the color code chart. There also is no Y/B in the chart. I can't assume it's green and red because that wire is not green and red
    Yeah, I am not sure why that would be. Do you just want to get your neutral indicator switch working? As was said in an earlier post I would check your ground.
    1984 HONDA ATC200M - OG, mid-restoration
    1981 HONDA ATC200 - future build
    1981 HONDA ATC185S - parts
    1984 ATC200X - roller, future build
    1984 Honda ATC250r - in a million pieces- ISO grab bar, PM if you have one

    Da velder
    _______________________________________________
    Feedback:
    http://www.3wheelerworld.com/showthr...ck-for-Barnboy
    Reply With Quote Reply With Quote
  14. 10-06-2015, 09:10 PM #14
    dwil4
    dwil4 is offline New to the board Arm chair racerNew to the board
    Join Date
    Sep 2015
    Location
    Western most part of N.C.
    --
    53
    Yea I would just like to get everything back to normal working order. If I hook it to the wire coming from behind the sprocket it does nothing. If I hook it back to the wire that the previous owner had grounded to the CDI cover then it stays on. lol
    Reply With Quote Reply With Quote
  15. 12-10-2015, 11:15 PM #15
    dwil4
    dwil4 is offline New to the board Arm chair racerNew to the board
    Join Date
    Sep 2015
    Location
    Western most part of N.C.
    --
    53
    Quote Originally Posted by coolpool View Post
    Welcome. Lots of info on coating tanks. Fairly straightforward if you adhere to the instructions to a tee. Sounds like your Neutral swith is stuck in the grounded position.
    How would I check to see if my neutral switch is bad? It is on at all times
    Reply With Quote Reply With Quote
