Headlight Wire/Socket and Ignitioin Switch Wire Length? All modes wanted!

[ps2fixer]

I'm looking to build a small database that holds the headlight wiring details for most machines (all 3 wheelers). I'm looking for wire length (socket base to wire harness plug), and a clear photo of both ends. I'll start with a 350x headlight socket since I have one on hand. The ultimate goal is to reproduce most models, I found a part source for the sockets fairly cheap but oem quality for lights that have the same style socket as the 350x (and a ton of other machines, tri-z and such).


Part numbers I need photos of:

33120-292-672 - 1980 ATC185 (same as 1974 CB450) Seems to be an oddball year and can't find any pics online
33130-943-003 - 79-80 atc110
33130-958-013 - 81-82 atc110, 81-83 atc185s/200, 200m, big red 200
33130-943-013 - 83-85 atc110, 84-85 atc125m, 84-86 200s, 85-86 trx125
33130-HB6-000 - 86-87 atc125m, 86-88 trx200sx
32120-HA6-000 - 250sx

ALL Yamaha, Suzuki, Polaris, and Kawasaki 3 wheelers, I don't know the models the best to list them off sadly . There are only a few different sockets per machine, much more interchangeable vs Honda

Machines I'm done with:
350x
atc90
250es big red

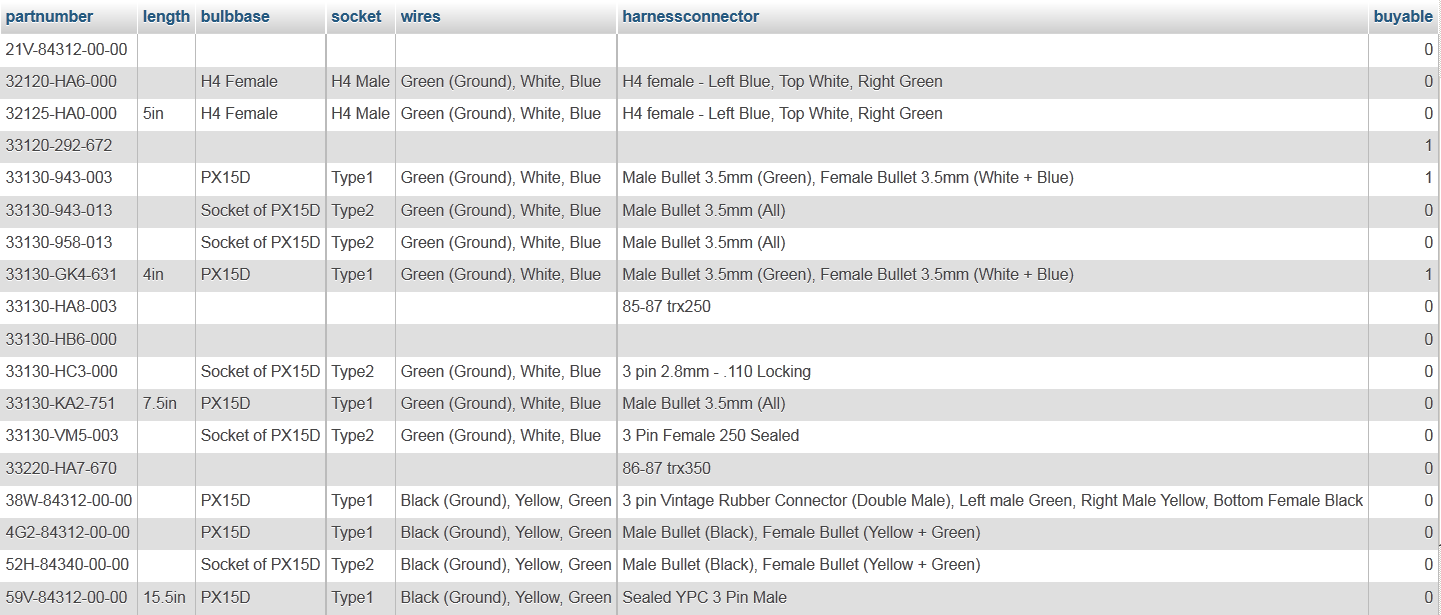

Here is what I have so far, not sure of a better way to post it, so it will just be an image for now. I'm planning to upload a simple page to view this info on, on my atv interchange site.

[ps2fixer]

1985 atc350x
7.5 inches long with 3 wires all solid colors, white, green, blue

[ps2fixer]

Still looking for any help with this. Each part number I can get measurements on saves me the money of buying it myself . I'll probably start buying some of the PX15D ones slowly over time (350x style) since I know I have a solid source for the sockets in OEM quality.

[ps2fixer]

I'm also interested in info relating to ignition switches, 3 and 4 wheeled. I'm still building the database but here is the general info I need, the internal switching I only need for non-honda machines as the service manuals are not so easy to find.

Wire length (bottom of ignition switch to tips of the longest wire)
Wire colors
Photo works best for the harness plug, I basically need to see which plug it is and where the wires go to in the plug, bullet connectors are the easiest to see
Internal switch (I have the service manual for most hondas, but Yamaha etc I don't. Need off connections vs on such as honda generally is Black + Green @ off , and red + yellow/red @ on.)
Switch body diameter (This is the part that goes though the dash hole, the smaller models have one that is around 1 inch, the 250es/250sx have a larger one)

Machines I don't need info on:
Big Red (I have all models covered)
250sx
85-86 trx250
83-84 125m
84 200m

I'm going to update the title of the thread. If you need an intensive, I can pay $5 per set of measurements on a part, but funds are somewhat limited.
