Thread: Please help with front hub and wheel identification 200x 350x 250r

  1. 05-11-2016, 04:18 PM #1
    ACSOLZE
    ACSOLZE is offline New to the board Arm chair racerNew to the board
    Join Date
    May 2016
    Location
    Marion, OH
    --
    21

    Please help with front hub and wheel identification 200x 350x 250r

    Hi new member here i just got a big load of atc parts. Right now i am trying to identify front wheels and hubs all sport ones. What are the differance in front hubs how to visually tell the diff or measurements i have a crate with about 40 of them. Same thing with wheels focusing on fronts right now. I would like to sell some of this stuff but need to know what they are off of. Any help or info or links would be great
    Reply With Quote Reply With Quote
  2. 05-11-2016, 04:32 PM #2
    newby200x's Avatar
    newby200x
    newby200x is offline Just Too Addicted Arm chair racerJust too addicted
    Join Date
    Sep 2012
    Location
    Indiana
    --
    460
    I would start w/ a picture of one, sometimes its easier just to look at and identify..look for a stamping in the wheel for the manufacturer and a part #
    Reply With Quote Reply With Quote
  3. 05-11-2016, 08:52 PM #3
    Mr. Clean's Avatar
    Mr. Clean
    Mr. Clean is offline Side-hilling son of a gun Got the holeshot
    Join Date
    Oct 2006
    Location
    Surprise AZ. In the garage working on trikes.
    --
    2,504
    Go to ebay and start looking for 250r etc, or post pics here and we can start identifying them.
    Reply With Quote Reply With Quote
  4. 05-12-2016, 03:55 PM #4
    ACSOLZE
    ACSOLZE is offline New to the board Arm chair racerNew to the board
    Join Date
    May 2016
    Location
    Marion, OH
    --
    21

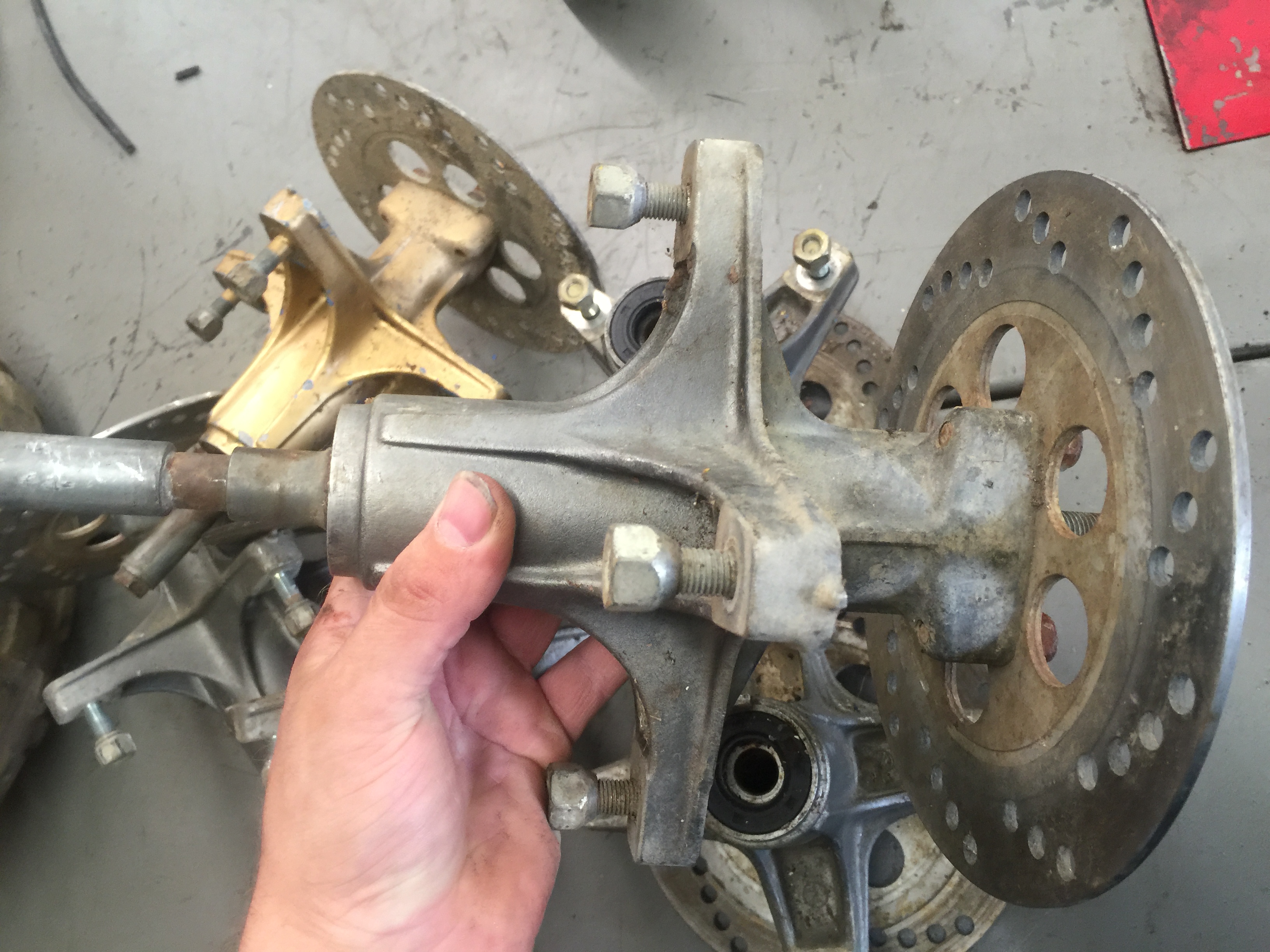

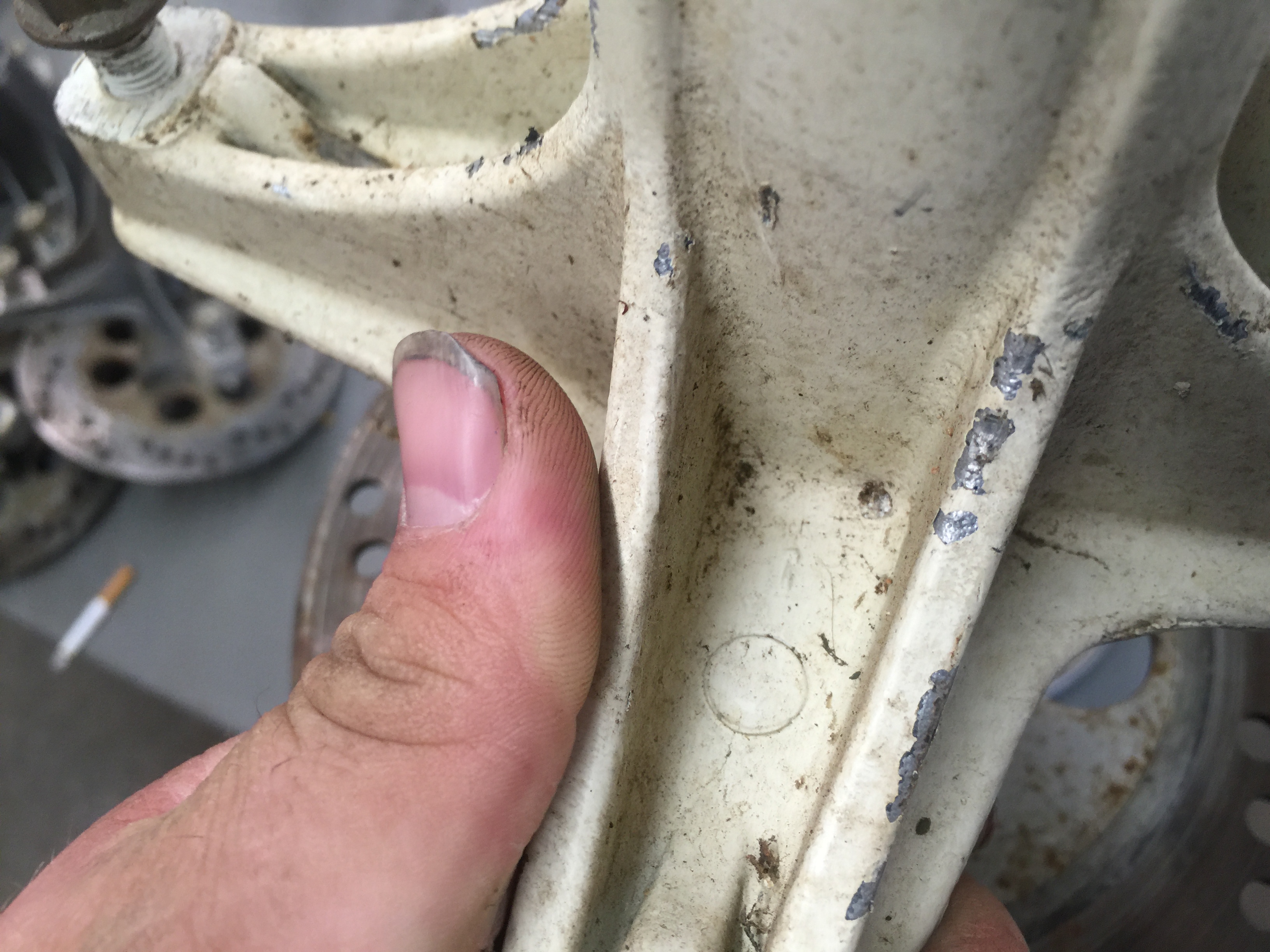

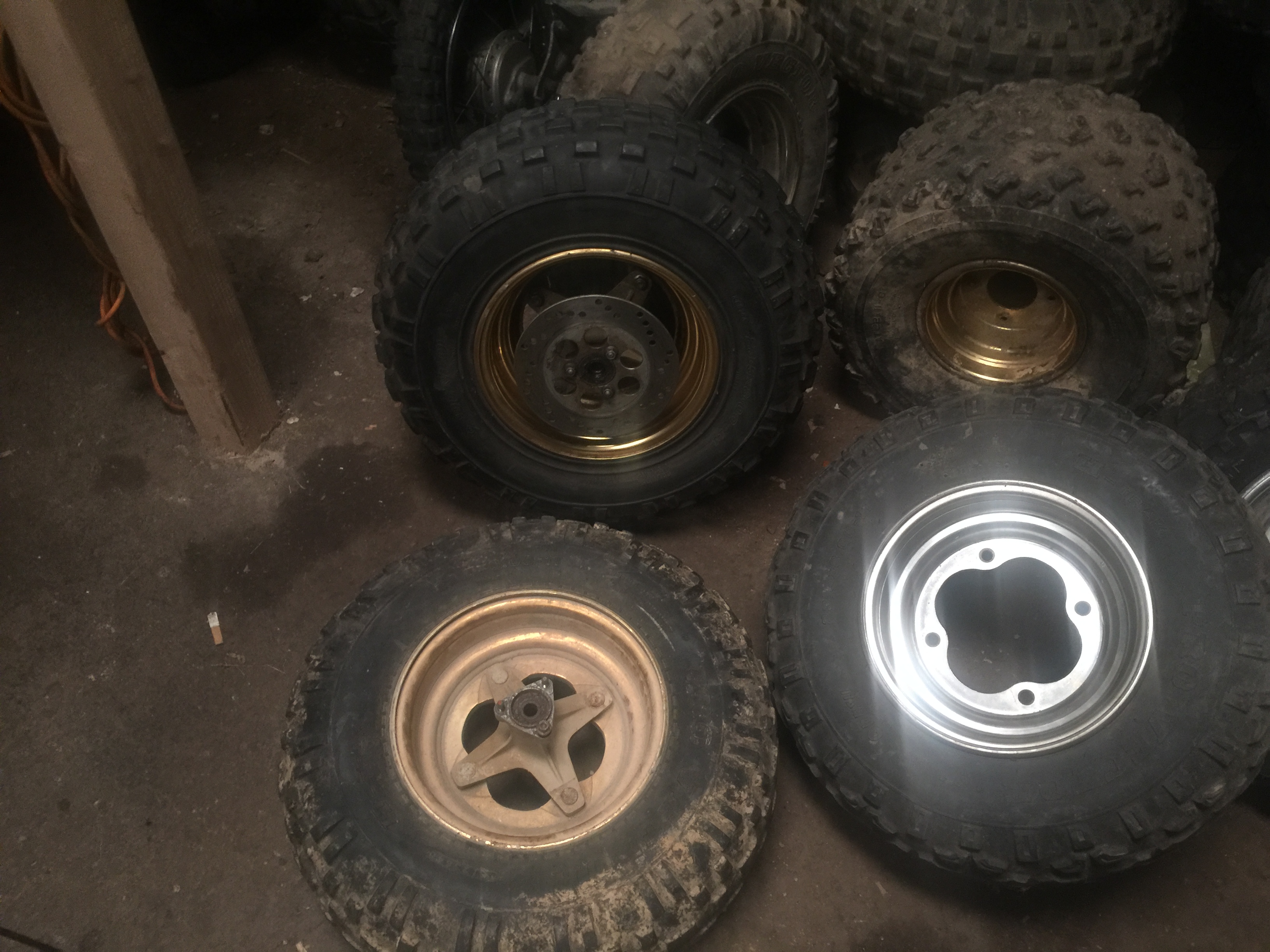

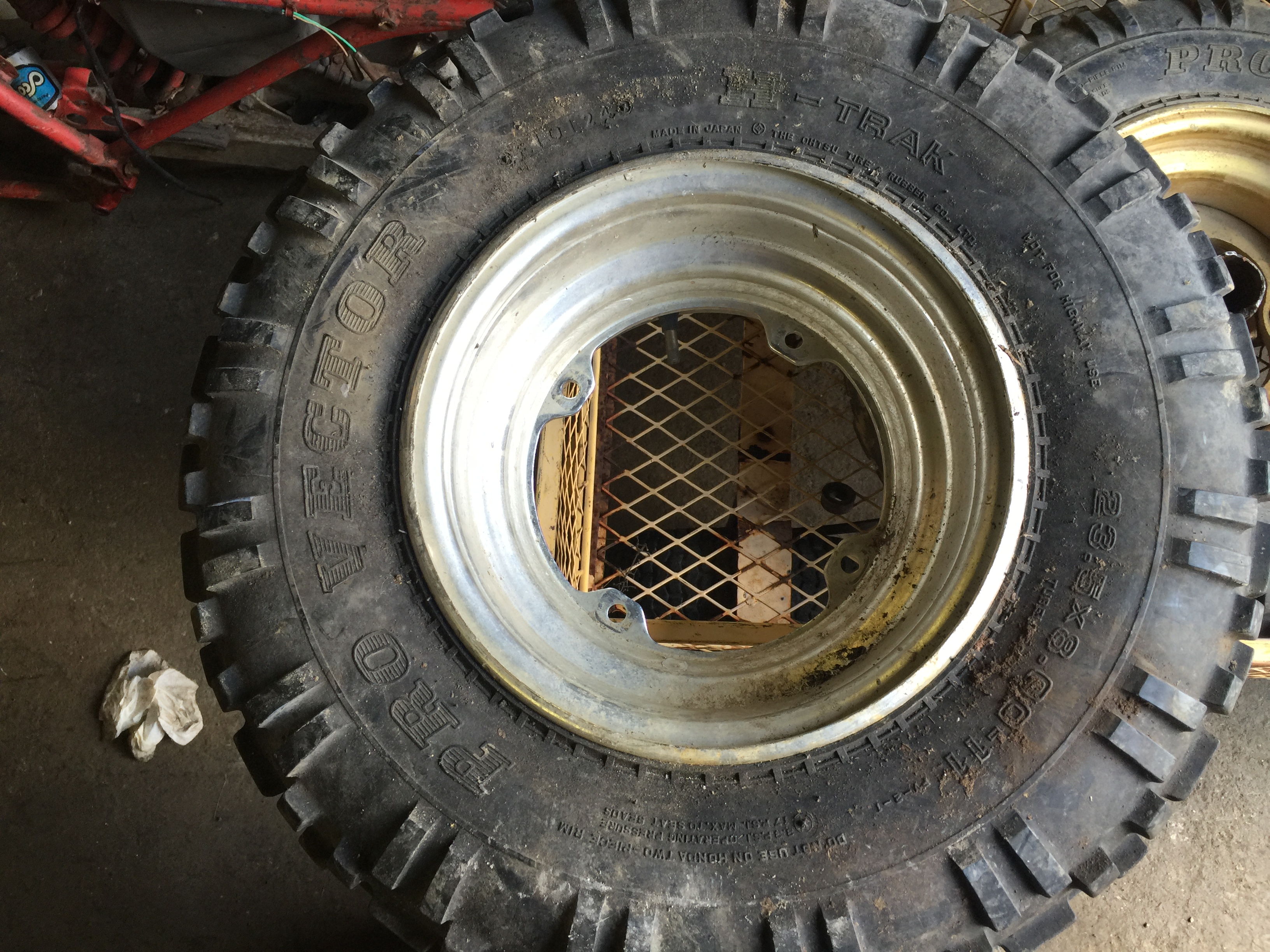

    Hope I uploaded these pics right can anyone tell me what year 250r this gold rim and hub is off of and what the alum. front is off of i have tons of those. thank you so much for your help. --Adam
    Attached Thumbnails Attached Thumbnails Click image for larger version.  Name: IMG_8655.JPG  Views: 44  Size: 1.75 MB  ID: 231573   Click image for larger version.  Name: IMG_8654.JPG  Views: 49  Size: 1.67 MB  ID: 231572   Click image for larger version.  Name: IMG_8653.JPG  Views: 55  Size: 1.83 MB  ID: 231571   Click image for larger version.  Name: DSCN5828.jpg  Views: 56  Size: 1.77 MB  ID: 231570   Click image for larger version.  Name: DSCN5823.jpg  Views: 55  Size: 1.75 MB  ID: 231569
    Reply With Quote Reply With Quote
  5. 05-12-2016, 03:58 PM #5
    ACSOLZE
    ACSOLZE is offline New to the board Arm chair racerNew to the board
    Join Date
    May 2016
    Location
    Marion, OH
    --
    21
    Also is there a better place to post some of these pics for identification. and if someone could direct me to anywhere I might find info on identifing atc parts besides ebay lol. thanks--Adam
    Reply With Quote Reply With Quote
  6. 05-12-2016, 04:37 PM #6
    Mr. Clean's Avatar
    Mr. Clean
    Mr. Clean is offline Side-hilling son of a gun Got the holeshot
    Join Date
    Oct 2006
    Location
    Surprise AZ. In the garage working on trikes.
    --
    2,504
    The gold rim in the first two and last two pics are 83-84 250R. The silver in pic 3 is either 85-86 350x or 86-87 200x. The silver in the background is 83-85 200x.
    Reply With Quote Reply With Quote
  7. 05-12-2016, 05:50 PM #7
    ACSOLZE
    ACSOLZE is offline New to the board Arm chair racerNew to the board
    Join Date
    May 2016
    Location
    Marion, OH
    --
    21
    Thank you so much at least I can start my organization
    Reply With Quote Reply With Quote
  8. 05-13-2016, 01:01 PM #8
    ACSOLZE
    ACSOLZE is offline New to the board Arm chair racerNew to the board
    Join Date
    May 2016
    Location
    Marion, OH
    --
    21
    Okay i got a few more for you so these are all 83-85 200x right
    Attached Thumbnails Attached Thumbnails Click image for larger version.  Name: IMG_8667.JPG  Views: 37  Size: 2.04 MB  ID: 231620   Click image for larger version.  Name: IMG_8666.JPG  Views: 43  Size: 1.88 MB  ID: 231621   Click image for larger version.  Name: IMG_8665.JPG  Views: 37  Size: 2.53 MB  ID: 231622   Click image for larger version.  Name: IMG_8659.JPG  Views: 40  Size: 2.69 MB  ID: 231623   Click image for larger version.  Name: IMG_8657.JPG  Views: 148  Size: 2.58 MB  ID: 231624
    Reply With Quote Reply With Quote
  9. 05-13-2016, 01:04 PM #9
    ACSOLZE
    ACSOLZE is offline New to the board Arm chair racerNew to the board
    Join Date
    May 2016
    Location
    Marion, OH
    --
    21
    Here is a better pic of these 2 i think there the same but diff numbers stamped in are these late model 200x?
    Attached Thumbnails Attached Thumbnails Click image for larger version.  Name: IMG_8664.JPG  Views: 46  Size: 1.92 MB  ID: 231625   Click image for larger version.  Name: IMG_8662.JPG  Views: 38  Size: 1.71 MB  ID: 231626
    Reply With Quote Reply With Quote
  10. 05-13-2016, 01:11 PM #10
    ACSOLZE
    ACSOLZE is offline New to the board Arm chair racerNew to the board
    Join Date
    May 2016
    Location
    Marion, OH
    --
    21
    are these 85 250r
    Attached Thumbnails Attached Thumbnails Click image for larger version.  Name: IMG_8661.JPG  Views: 48  Size: 1.96 MB  ID: 231627   Click image for larger version.  Name: IMG_8660.JPG  Views: 47  Size: 2.66 MB  ID: 231628
    Reply With Quote Reply With Quote
  11. 05-13-2016, 01:12 PM #11
    Mr. Clean's Avatar
    Mr. Clean
    Mr. Clean is offline Side-hilling son of a gun Got the holeshot
    Join Date
    Oct 2006
    Location
    Surprise AZ. In the garage working on trikes.
    --
    2,504
    Quote Originally Posted by ACSOLZE View Post
    Okay i got a few more for you so these are all 83-85 200x right
    Yes, 83-85 200x.

    Quote Originally Posted by ACSOLZE View Post
    are these 85 250r
    Yes.
    Reply With Quote Reply With Quote
  12. 05-13-2016, 01:14 PM #12
    ACSOLZE
    ACSOLZE is offline New to the board Arm chair racerNew to the board
    Join Date
    May 2016
    Location
    Marion, OH
    --
    21
    not sure on these first 2 are 9 inch last 2 are 8 inch. again thank you so much for the help - Adam
    Attached Thumbnails Attached Thumbnails Click image for larger version.  Name: IMG_8671.JPG  Views: 58  Size: 1.67 MB  ID: 231629   Click image for larger version.  Name: IMG_8670.JPG  Views: 49  Size: 2.09 MB  ID: 231630   Click image for larger version.  Name: IMG_8669.JPG  Views: 44  Size: 1.68 MB  ID: 231631   Click image for larger version.  Name: IMG_8668.JPG  Views: 41  Size: 2.02 MB  ID: 231632
    Reply With Quote Reply With Quote
  13. 05-13-2016, 02:33 PM #13
    Mr. Clean's Avatar
    Mr. Clean
    Mr. Clean is offline Side-hilling son of a gun Got the holeshot
    Join Date
    Oct 2006
    Location
    Surprise AZ. In the garage working on trikes.
    --
    2,504
    Quote Originally Posted by ACSOLZE View Post
    not sure on these first 2 are 9 inch last 2 are 8 inch. again thank you so much for the help - Adam
    Hirata 9" rims are 85 250r. Enkei 9" rims without rolled bead is 86 ATC 250R, and rolled bead is TRX250R. The gold 8" rims are 83-84 ATC 250R.
    Reply With Quote Reply With Quote
  14. 05-13-2016, 03:58 PM #14
    ACSOLZE
    ACSOLZE is offline New to the board Arm chair racerNew to the board
    Join Date
    May 2016
    Location
    Marion, OH
    --
    21
    Here comes some front hubs for identification
    Attached Thumbnails Attached Thumbnails Click image for larger version.  Name: IMG_8680.JPG  Views: 38  Size: 1.96 MB  ID: 231658   Click image for larger version.  Name: IMG_8679.JPG  Views: 32  Size: 1.84 MB  ID: 231659   Click image for larger version.  Name: IMG_8678.JPG  Views: 33  Size: 1.92 MB  ID: 231660   Click image for larger version.  Name: IMG_8677.JPG  Views: 45  Size: 1.80 MB  ID: 231661   Click image for larger version.  Name: IMG_8676.JPG  Views: 40  Size: 2.06 MB  ID: 231662   Click image for larger version.  Name: IMG_8675.JPG  Views: 32  Size: 2.19 MB  ID: 231663

    Reply With Quote Reply With Quote
  15. 05-13-2016, 04:00 PM #15
    ACSOLZE
    ACSOLZE is offline New to the board Arm chair racerNew to the board
    Join Date
    May 2016
    Location
    Marion, OH
    --
    21
    these and the next ones look the same except these have a 1 casting
    Attached Thumbnails Attached Thumbnails Click image for larger version.  Name: IMG_8685.JPG  Views: 48  Size: 2.05 MB  ID: 231664   Click image for larger version.  Name: IMG_8684.JPG  Views: 32  Size: 1.78 MB  ID: 231665   Click image for larger version.  Name: IMG_8683.JPG  Views: 29  Size: 1.90 MB  ID: 231666   Click image for larger version.  Name: IMG_8682.JPG  Views: 40  Size: 1.95 MB  ID: 231667
    Reply With Quote Reply With Quote
