Please help with front hub and wheel identification 200x 350x 250r

**ACSOLZE** · 05-13-2016, 04:02 PM

and these have a 2 in the casting

**ACSOLZE** · 05-13-2016, 04:04 PM

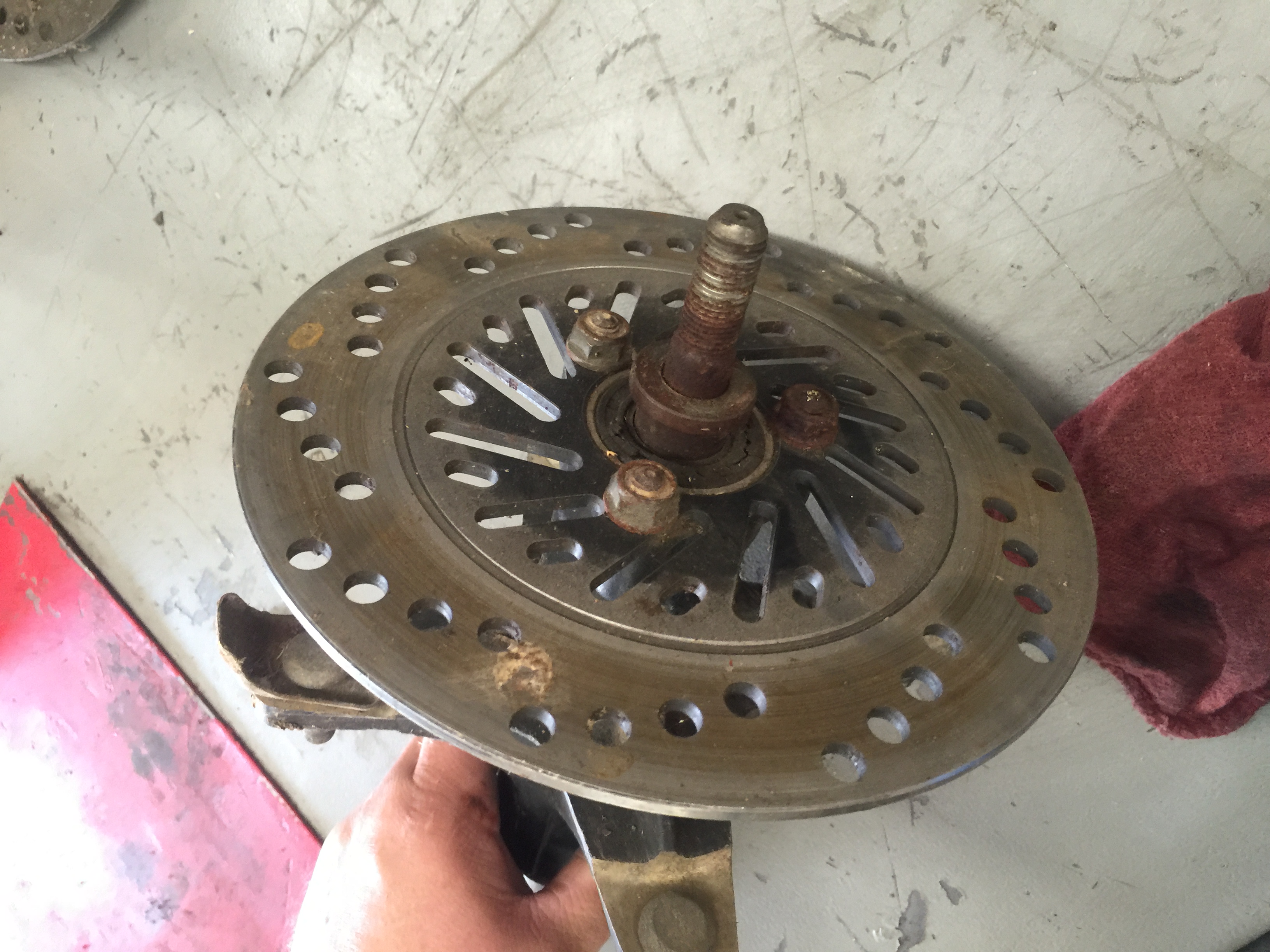

this one i think is either 86 200x or 350x not sure, help

**ACSOLZE** · 05-13-2016, 04:06 PM

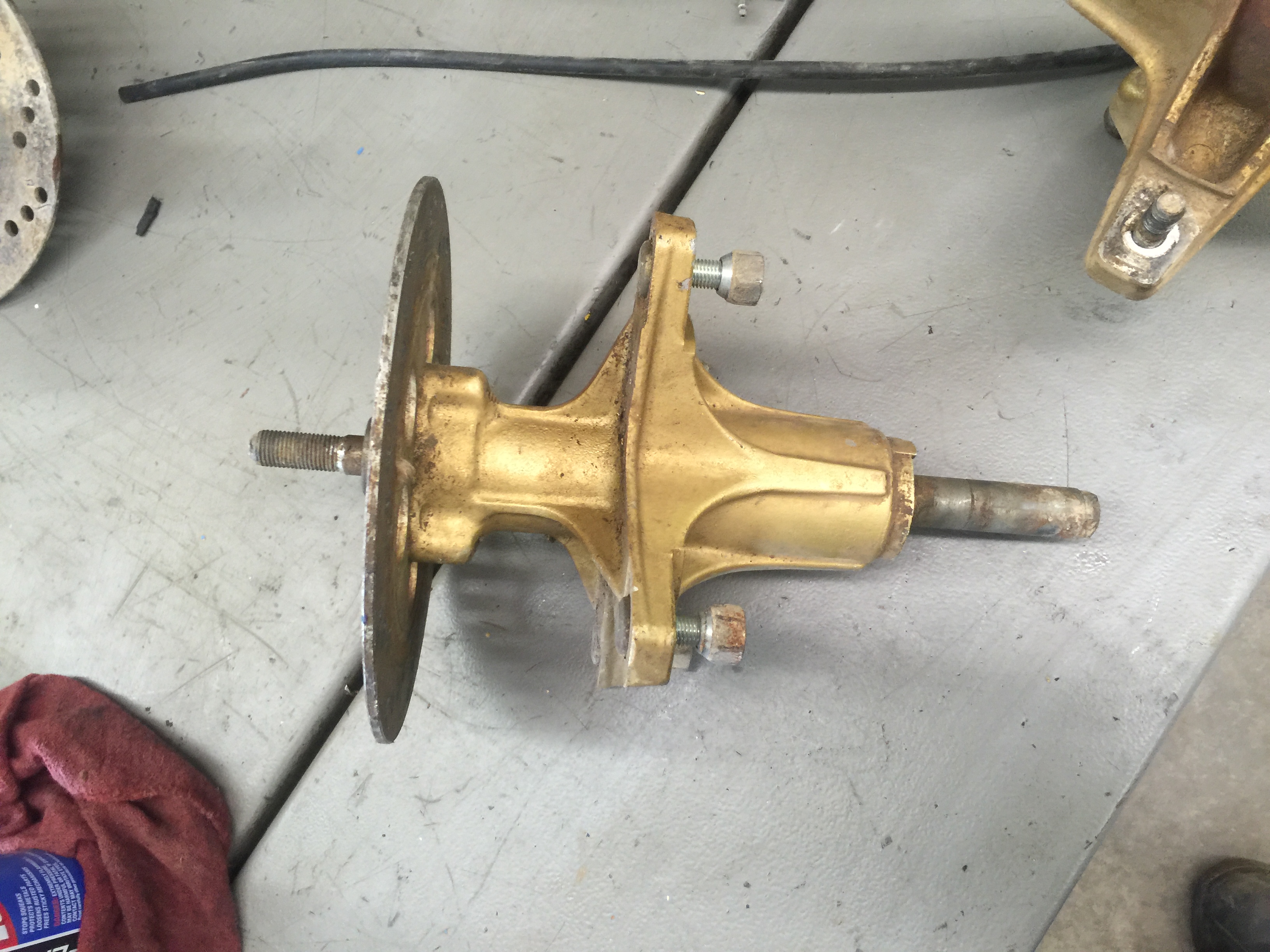

and i think this may be 85 86 250r?

**atc300r** · 05-13-2016, 04:47 PM

Originally Posted by ACSOLZE

this one i think is either 86 200x or 350x not sure, help

This is a 350x hub I can tell by the disc brake rotor.83-85 200x and 83-84 250r front hubs have thread in studs and larger bolt pattern.

**atc300r** · 05-13-2016, 04:52 PM

Originally Posted by ACSOLZE

not sure on these first 2 are 9 inch last 2 are 8 inch. again thank you so much for the help - Adam

Sorry Mr.Clean the 8 inch gold rims pictured are not oem 83-84 250r.The 83-84 250r rear rims look like the 83-85 200x rear rims just gold .These rims may be after market or Yamaha quad rims.

Click image for larger version.

Name: __1-2.jpeg
Views: 45
Size: 21.3 KB
ID: 231682

**Mr. Clean** · 05-13-2016, 08:01 PM

Originally Posted by atc300r

Sorry Mr.Clean the 8 inch gold rims pictured are not oem 83-84 250r.

Thanks for the clarification!! I am okay with being corrected!!

**onformula1** · 05-13-2016, 08:41 PM

Originally Posted by ACSOLZE

Hope I uploaded these pics right can anyone tell me what year 250r this gold rim and hub is off of and what the alum. front is off of i have tons of those. thank you so much for your help. --Adam

The silver one in the third picture is a Enkie 1985 only 350X

**onformula1** · 05-13-2016, 08:46 PM

Originally Posted by atc300r

Sorry Mr.Clean the 8 inch gold rims pictured are not oem 83-84 250r.The 83-84 250r rear rims look like the 83-85 200x rear rims just gold .These rims may be after market or Yamaha quad rims.

The rims in this post are 1985 Tri-Z, tires too.

**ACSOLZE** · 05-14-2016, 04:19 PM

THANKS FOR ALL THE HELP GUYS. onformula1 are both these wheels 85 350x both are enkie but have diff. numbers.
Also can anybody identify this hub. Thanks--Adam

**RIDE-RED 250r** · 05-14-2016, 06:05 PM

I was going to add that '86 350x rims have the cast centers.

Here is an example of the '86 350x front rim:

**ACSOLZE** · 05-14-2016, 08:54 PM

So are the ones I have posted bothe 85 350x even though they have diff numbers stamped?

**onformula1** · 05-14-2016, 09:01 PM

Originally Posted by ACSOLZE

THANKS FOR ALL THE HELP GUYS. onformula1 are both these wheels 85 350x both are enkie but have diff. numbers.
Also can anybody identify this hub. Thanks--Adam

The 1985 350X will be stamped 0285 DOT

The hub is a 1986 350X

**ACSOLZE** · 05-14-2016, 09:39 PM

Any idea of the one stamped 1085
