    Help with taillight wires '86 Honda 250es Big Red

    Noticed my headlight was dim - decided to get the taillights working and it turns out dim headlight was caused by a short in the taillight wires. Previous owner did a real job back there hacking stuff up ...Anyway, after removing all the electrical tape I'm left with three sets of wires - ea set has 12v with the light switch on. Why do I have three sets of hot wires? Is there supposed to be a middle light (#2 in pic) that's missing?



    ...Tools ...Toys (same thing)
    Reply With Quote Reply With Quote
  2. 07-07-2016, 11:01 PM #2
    jonolanracin
    jonolanracin is offline At The Back Of The Pack Arm chair racerAt the back of the pack
    Join Date
    Aug 2006
    Location
    west tenn
    --
    319
    Im no expert but maybe the extra was to hook up a trailer light ?
    Reply With Quote Reply With Quote
  3. 07-08-2016, 02:51 AM #3
    deejaycee_2000's Avatar
    deejaycee_2000
    deejaycee_2000 is offline At The Back Of The Pack Arm chair racerFirst time rider
    Join Date
    Feb 2016
    Location
    Stellenbosch, South Africa
    --
    196
    I just did mine .... 1. & 2. is suppose to be on a double female ferrule lug together, with one set connected to the one light and the other set open. 3. is correct as it is now, They probably did that so you can connect another tail/stop light without cutting the wires should you wish to do so ....
    1983 Honda ATC250R
    1983 Honda ATC200E BIG RED (sold)
    1984 Honda ATC200E BIG RED
    1983 Honda ATC200X
    1984 Honda ATC200X (sold)
    1985 Honda ATC70 x 3
    1985 Honda ATC200ES BIG RED (FatCat Conversion)
    1985 Honda ATC250ES BIG RED
    1986 Honda ATC250ES BIG RED
    1988 Honda ATC250ES BIG RED
    1995 Honda Frankentrike 50cc 2-stroke
    2001 Honda TRX90
    2002 Yamaha Breeze 125 (sold)
    2004 Honda TRX300EX (sold)
    2008 Honda TRX250TM
    1976 Suzuki RV90M (sold)
    1967 Vespa Primavera 125
    1958 Massey Ferguson 35
    Reply With Quote Reply With Quote
  4. 07-09-2016, 07:09 AM #4
    UncleJerm76's Avatar
    UncleJerm76
    UncleJerm76 is offline New to the board Arm chair racerNew to the board
    Join Date
    Jun 2016
    Location
    Central FL
    --
    38
    Quote Originally Posted by deejaycee_2000 View Post
    I just did mine .... 1. & 2. is suppose to be on a double female ferrule lug together, with one set connected to the one light and the other set open. 3. is correct as it is now, They probably did that so you can connect another tail/stop light without cutting the wires should you wish to do so ....
    Thank you sir! Can you please post a few pics for reference of the "double ferrule lug" whenever you get a chance?


    ...Tools ...Toys (same thing)
    Reply With Quote Reply With Quote
  5. 07-11-2016, 03:14 AM #5
    deejaycee_2000's Avatar
    deejaycee_2000
    deejaycee_2000 is offline At The Back Of The Pack Arm chair racerFirst time rider
    Join Date
    Feb 2016
    Location
    Stellenbosch, South Africa
    --
    196
    Sure no problem, I will take a few pics this evening ...
    1983 Honda ATC250R
    1983 Honda ATC200E BIG RED (sold)
    1984 Honda ATC200E BIG RED
    1983 Honda ATC200X
    1984 Honda ATC200X (sold)
    1985 Honda ATC70 x 3
    1985 Honda ATC200ES BIG RED (FatCat Conversion)
    1985 Honda ATC250ES BIG RED
    1986 Honda ATC250ES BIG RED
    1988 Honda ATC250ES BIG RED
    1995 Honda Frankentrike 50cc 2-stroke
    2001 Honda TRX90
    2002 Yamaha Breeze 125 (sold)
    2004 Honda TRX300EX (sold)
    2008 Honda TRX250TM
    1976 Suzuki RV90M (sold)
    1967 Vespa Primavera 125
    1958 Massey Ferguson 35
    Reply With Quote Reply With Quote
  6. 07-14-2016, 02:31 AM #6
    deejaycee_2000's Avatar
    deejaycee_2000
    deejaycee_2000 is offline At The Back Of The Pack Arm chair racerFirst time rider
    Join Date
    Feb 2016
    Location
    Stellenbosch, South Africa
    --
    196

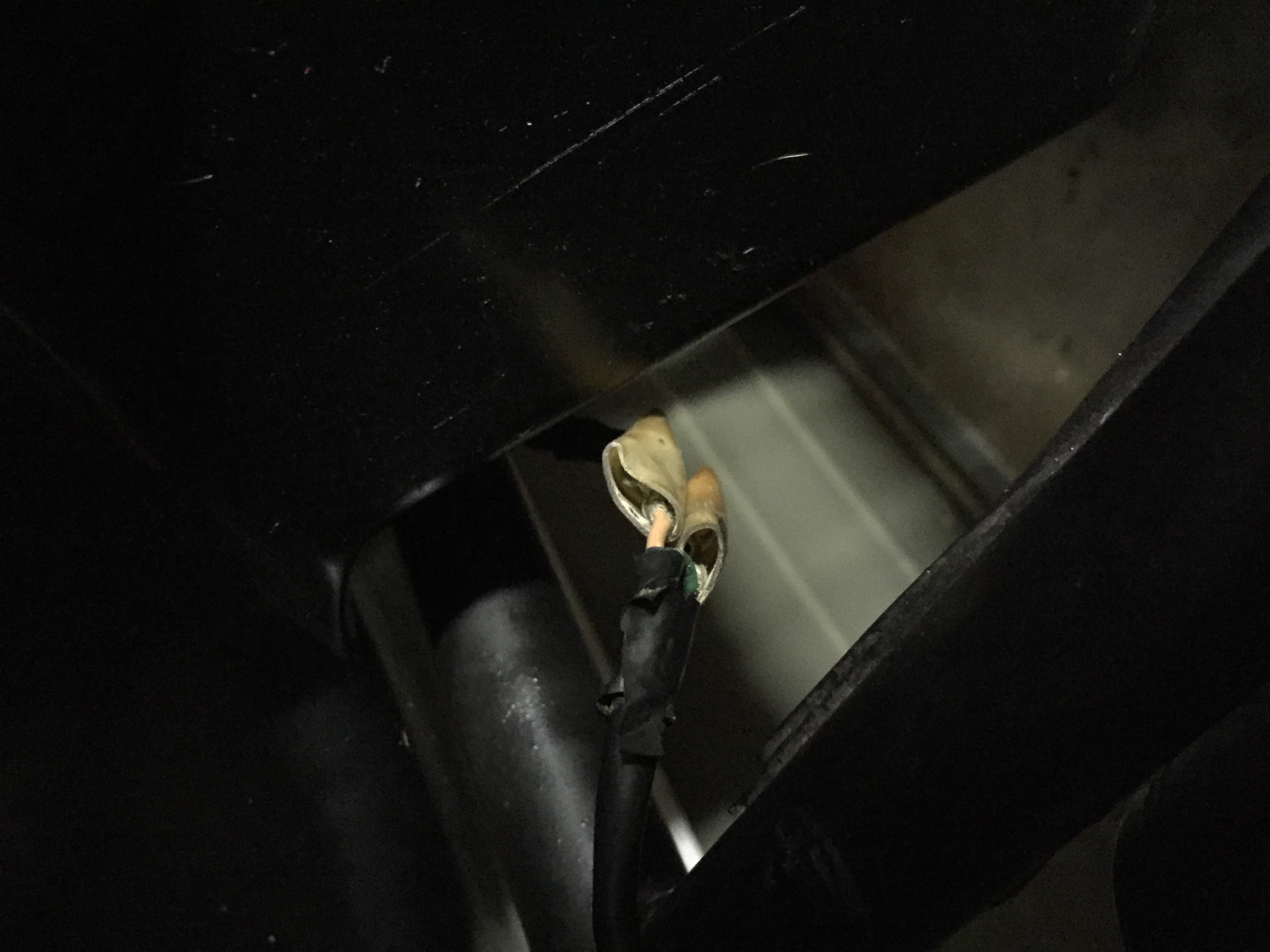

    Apologies for the terrible quality, I had a space limit when taking the pics, I can take better ones when I assemble my carb next week.
