New to the board
Arm chair racerNew to the board

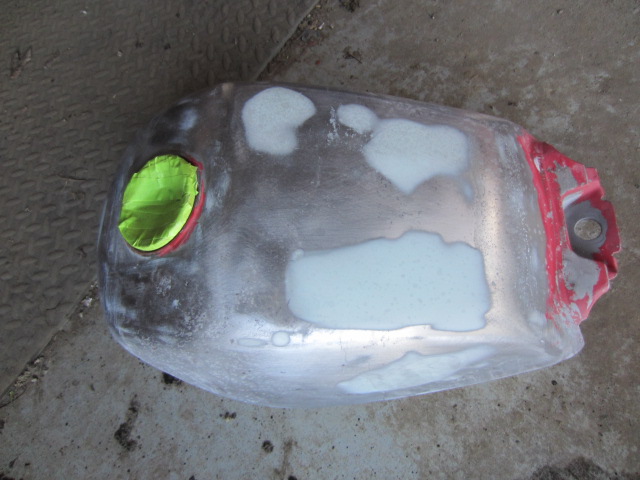

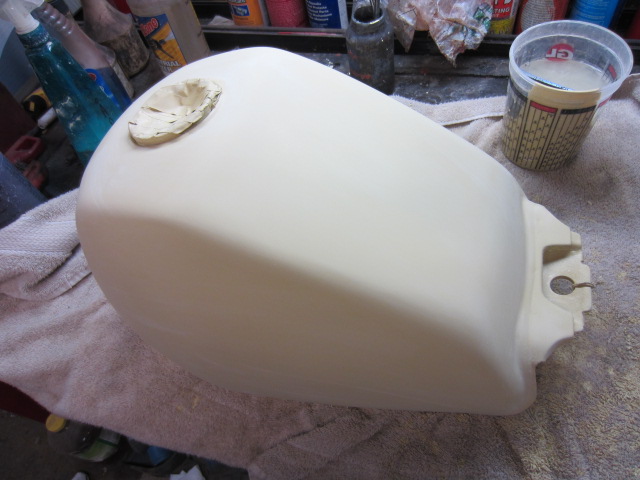

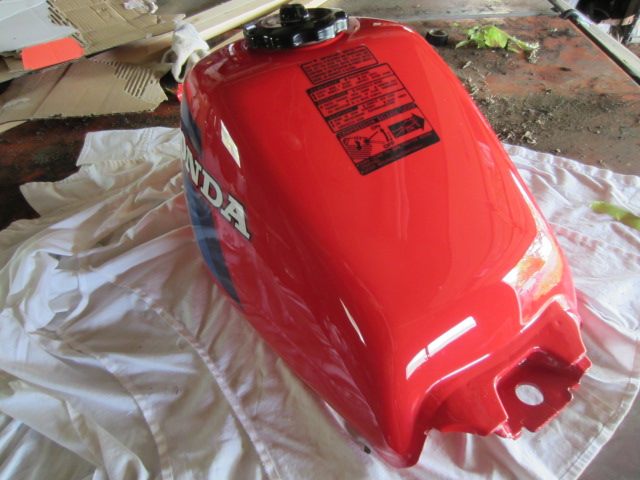

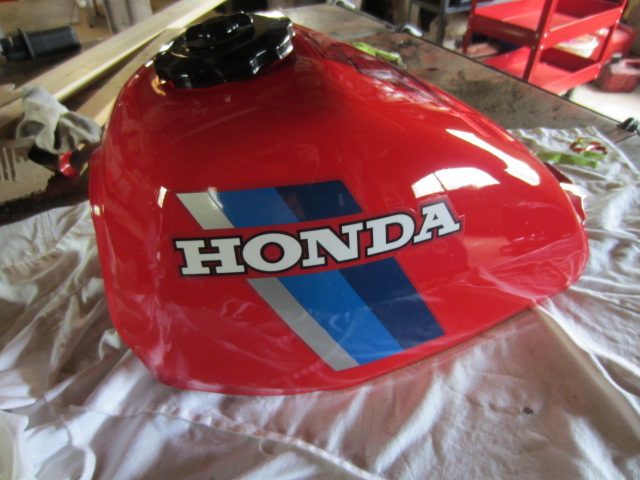

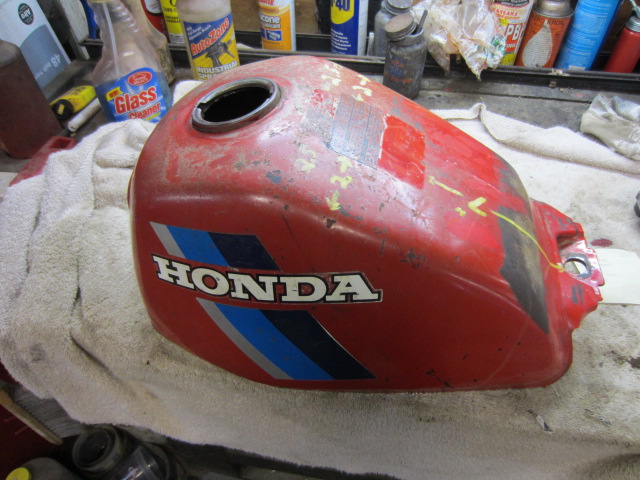

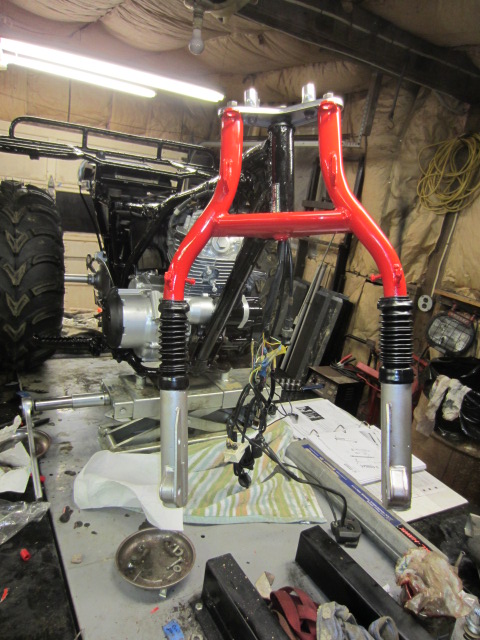

Currently restoring a 1984 Honda BIG RED 200ES. When it came to the tank and the forks I had a hard time finding the Honda passion red. I found an automotive paint for a Nissan that worked out well for me. I first used Redkote to coat the tank. Then I went on to stripping the parts, bodywork, painting with base, then clear. After that it was on to color sanding and buffing and finally add the decals.
Power User
The day begins with 3WW
Very nice work Mark. Thanx for sharing!
Please help those who cannot help themselves.
ALWAYS buying Museum quality machines,3 and 4 wheels. And any and ALL ,NOS parts,EVERY brand.
I am turning my PM's Off,my Email is billsracing@hotmail.com,put 3WW in the subject. Thanx!
Gun laws do not stop criminals. BULLETS do.
New to the board
Arm chair racerNew to the board
Any automotive commercial paint store can mix Honda Passion Red.
Just Too Addicted
Arm chair racerJust too addicted
Man! That's as fancy as can be. Nice work
Trikein' Away
Lord of the trike
Looks better than new, great job.
New to the board
Arm chair racerNew to the board
That tanks looks great! What's the best way to clean the inside? I've got a few so full of rust and gunk I don't know how to get it squeaky inside. Especially the way the caps are flanged inward.
Just Too Addicted
Arm chair racerJust too addicted
Some guys on the trikesylvania forum's are saying apple vinegar and some other stuff. Check it out
New to the board
Arm chair racerNew to the board
I have used white vinegar to clean the inside of the tanks with good results. You may need to let it soak for a few days on a heavily rusted tank.
At The Back Of The Pack
Arm chair racerFirst time rider
Wow nice job!
@HoldMyBeer ... pool acid will clean up the rust in a few minutes, some folks will say don't do it, but I have used it on over 15 tanks and always had good results.
1983 Honda ATC250R
1983 Honda ATC200E BIG RED (sold)
1984 Honda ATC200E BIG RED
1984 Honda ATC200X (sold)
1985 Honda ATC70 x 3
1985 Honda ATC250ES BIG RED
1988 Honda ATC250ES BIG RED
1995 Honda Frankentrike 50cc 2-stroke
2001 Honda TRX90
2004 Honda TRX300EX (sold)
2008 Honda TRX250TM
1976 Suzuki RV90M (sold)
1967 Vespa Primavera 125
1958 Massey Ferguson 35
At The Back Of The Pack
Arm chair racerAt the back of the pack
Let me ask a question due to my lack experience. When you sanded and filled the dents i noticed a good bit of left over paint near the cap and bracket. Did you sand off the rest of the paint after filling the dents? Or did you just paint over it?
Did you sand blast or some other technique?
Sorry if this is basic or common knowledge but I have previously used local services for blasting and want to just do it myself if possible.
Previously known as HighFlying101 since 2003
I changed my email and lost my password
Current: '85 Tri-Z , '83 250r , '86 Tecate, '80 ATC110
Prior: '85 FTZ ATC350X, '85 Tri-Z, '85 ATC200X w/ Bassani exhaust, '83 Big Red, '81 ATC185S, '79 ATC110
http://www.ipetitions.com/petition/tpctrikes/
New to the board
Arm chair racerNew to the board
I did not remove all of the paint after filling the dents. This was just a practice job for me since I was not sure of the color match. I typically use a chemical paint stripper then I media blast the tank in my blast cabinet. In my experience using the chemical stripper saves a lot of time as compared to just media blasting the tank. Now that I know I have a good color match I would completely remove all the paint from the tank before I do any bodywork and primer for future jobs.
New to the board
Arm chair racerNew to the board
That red looks good. I have found rustoleum "sunrise red" 7762 is a pretty good match with Honda red.
Got The Holeshot
Arm chair racerJust too addicted
Wow...that tank looks better than they did on the showroom floor! Thank you for sharing.
1985 Honda ATC 250ES
1985 Honda ATC 250SX
1984 Honda ATC 200M
1983 Honda ATC 200
1984 Honda ATC 110
At The Back Of The Pack
Arm chair racerAt the back of the pack
That is really nice work.
