    Tri Z top mount fuel tank *PICS* UPDATE: Final pics on page 4.

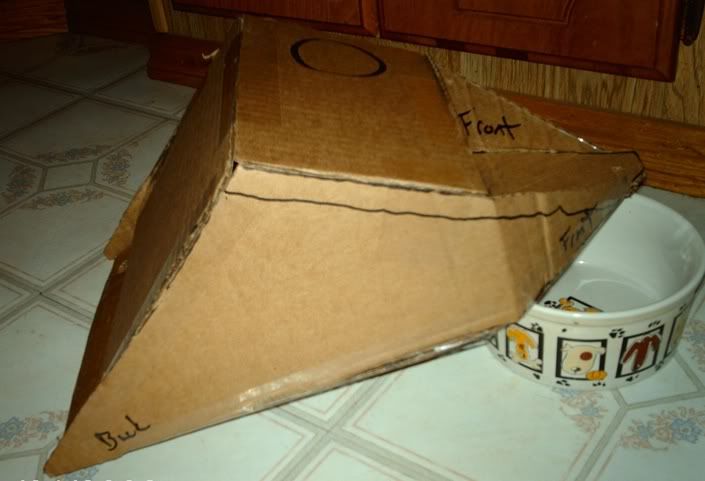

    Well I decided to make a top mount fuel tank for my Z. The project started about a week ago with me using cardboard to design the tank. The goal of using the cardboard is to keep as many straight lines as possible. It took about 30 min or so to come up with this design. It should hold around 1.5 to 1.75 gallons.

    I'll post some more progress here in a little while.

    Last edited by jsimonh; 02-15-2006 at 01:56 PM.
    Reply With Quote Reply With Quote
  2. 01-30-2006, 01:37 PM #2
    Cody's Avatar
    Cody
    Cody is offline Just Too Addicted Arm chair racerJust too addicted
    Join Date
    Feb 2005
    Location
    FLORIDA
    --
    731
    Wow.. Looks like your serious about this. Good luck dude.
    1985 Yamaha 200E Shaft - New Toy / Project
    1983 Yamaha YT175 - Kinda retired?
    Reply With Quote Reply With Quote
  3. 01-30-2006, 02:58 PM #3
    Red Rider's Avatar
    Red Rider
    Red Rider is offline Wires, Hoses, & Digital Wizardry. Got the holeshot
    Join Date
    Oct 2003
    Location
    Las Vegas, NV.
    --
    2,489
    Won't fuel soak right through that cardboard?
    Red Rider's Sand Machine Updated 07/23/14
    Reply With Quote Reply With Quote
  4. 01-30-2006, 03:55 PM #4
    jsimonh's Avatar
    jsimonh
    jsimonh is offline Just Too Addicted Arm chair racerJust too addicted
    Join Date
    May 2005
    Location
    Hobart, Oklahoma
    --
    570
    Quote Originally Posted by Red Rider
    Won't fuel soak right through that cardboard?
    No, I'm going to use Kreem or Red-Kote on it. I'm not sure how to put gas in it yet though.

    Anyways....... I've been doing alot of grinding on it and will have some pictures of it in a little while. I forgot my camera when we did all the metal welding/cutting so I don't have a detailed account, but the pictures will speak for themselves.
    Reply With Quote Reply With Quote
  5. 01-30-2006, 04:17 PM #5
    Billy Golightly's Avatar
    Billy Golightly
    Billy Golightly is offline Always finding new and exciting ways to not give a hoot in hell Catch me if you can
    Join Date
    Sep 2002
    Location
    Live Oak, FL
    --
    15,068
    Blog Entries
    14
    Sweet...I'm borrowing an old Klemm (I believe thats what it is) tank right now to make some templates from where I can make one too.
    Reply With Quote Reply With Quote
  6. 01-30-2006, 06:05 PM #6
    Aussieduner's Avatar
    Aussieduner
    Aussieduner is offline Got The Holeshot Arm chair racerJust too addicted
    Join Date
    May 2005
    Location
    Australia
    --
    1,047
    I looked at a Z for sale the other day and it had an aftermarket tank installed up top,i may be able to go back and take a pic of it.

    Aussie
    Keeping 3 Wheelers Alive Downunder !
    Reply With Quote Reply With Quote
  7. 01-31-2006, 12:27 AM #7
    jsimonh's Avatar
    jsimonh
    jsimonh is offline Just Too Addicted Arm chair racerJust too addicted
    Join Date
    May 2005
    Location
    Hobart, Oklahoma
    --
    570

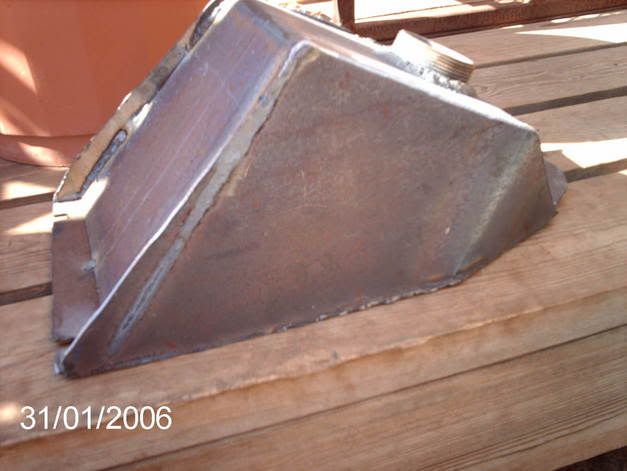

    Here is the tank before I did some serious grinding on it. I wish I would have had the camera to take pictures of the actual building . I have made more progress today and will post pics later. Hopefully this coming Wenesday I will be able to put the final welding on it. I also ordered some Red-Kote for it today. I'm starting to get really excited about it!

    Reply With Quote Reply With Quote
  8. 01-31-2006, 12:33 AM #8
    Dusty's Avatar
    Dusty
    Dusty is offline At The Back Of The Pack Arm chair racerAt the back of the pack
    Join Date
    Sep 2005
    Location
    Groveport,Ohio
    --
    435
    man that things looks nice...i have the zinger top mount on mine....
    My Trikes
    1985 ATC 250r (MX Project)
    1985 ATC 70 (with pit bike motor)
    1983 ATC 110
    1984 225dx
    2005 SDG 110 Pit Bike

    OTC Tride & True

    Past Trikes
    1985 ATC 70
    1984 200s Almost Mint(stolen in 99)have pics of her..
    1983 YTM 200
    Reply With Quote Reply With Quote
  9. 01-31-2006, 08:52 AM #9
    jsimonh's Avatar
    jsimonh
    jsimonh is offline Just Too Addicted Arm chair racerJust too addicted
    Join Date
    May 2005
    Location
    Hobart, Oklahoma
    --
    570
    Quote Originally Posted by Dusty
    man that things looks nice...i have the zinger top mount on mine....
    Thanks. I have the Zinger top mount on mine at the moment. I thought I would like it, but I couldn't get over the way it just sticks up through the airbox cover. It is still better than the stock setup, but I'm really hoping that this will pan out.
    Reply With Quote Reply With Quote
  10. 01-31-2006, 12:06 PM #10
    bluevetteguy
    bluevetteguy is offline New to the board Arm chair racerNew to the board
    Join Date
    Jan 2006
    Location
    Stillwater, OK
    --
    67
    I kinda like how the fuel goes under the seat. Its different. I felt like an idiot though when I asked the guy I bought it from where the gas goes. Mine is the only tri-z I've ever seen in person. Is there any benefit to putting the tank where its "supposed" to be? Or is it just cosmetics?
    Reply With Quote Reply With Quote
  11. 01-31-2006, 12:23 PM #11
    Yamahauler's Avatar
    Yamahauler
    Yamahauler is offline Power User Got the holeshot
    Join Date
    Sep 2004
    Location
    Brandon, Manitoba
    --
    2,209
    Quote Originally Posted by bluevetteguy
    I kinda like how the fuel goes under the seat. Its different. I felt like an idiot though when I asked the guy I bought it from where the gas goes. Mine is the only tri-z I've ever seen in person. Is there any benefit to putting the tank where its "supposed" to be? Or is it just cosmetics?
    You dontn have to worry about the fuel pump for one thing, they are known to screw up.

    You have more room for differant shocks (piggyback resivours, banshee shocks, etc.

    You have a less restricted air flow if you run a open K&N or something along those lines.
    Reply With Quote Reply With Quote
  12. 01-31-2006, 12:53 PM #12
    bluevetteguy
    bluevetteguy is offline New to the board Arm chair racerNew to the board
    Join Date
    Jan 2006
    Location
    Stillwater, OK
    --
    67
    I see, some very obvious reasons that I didn't even think about. I've got a different fuel pump on mine so I guess the previous owner had that problem.
    Reply With Quote Reply With Quote
  13. 01-31-2006, 01:58 PM #13
    MTS's Avatar
    MTS
    MTS is offline Power User The day begins with 3WW
    Join Date
    Aug 2004
    Location
    Ab Canada
    --
    4,368
    Did you put baffles in that tank so the fuel dont slosh around and foam? cause if you didnt that can give you as many problems as a fuel pump..lol
    1985 Tri-Z-

    Quote Originally Posted by mywifeknowseverything
    Just hit the Freakin Gas and Hold on!!!!!
    Reply With Quote Reply With Quote
  14. 01-31-2006, 02:52 PM #14
    Cody's Avatar
    Cody
    Cody is offline Just Too Addicted Arm chair racerJust too addicted
    Join Date
    Feb 2005
    Location
    FLORIDA
    --
    731
    Quote Originally Posted by My trike Sucks
    Did you put baffles in that tank so the fuel dont slosh around and foam? cause if you didnt that can give you as many problems as a fuel pump..lol
    I hope you thought about that dude. Because it could be a pain.
    1985 Yamaha 200E Shaft - New Toy / Project
    1983 Yamaha YT175 - Kinda retired?
    Reply With Quote Reply With Quote
  15. 01-31-2006, 03:02 PM #15
    ATCWRENCH's Avatar
    ATCWRENCH
    ATCWRENCH is offline Just Too Addicted Arm chair racerJust too addicted
    Join Date
    Jan 2005
    Location
    Great Bend
    --
    704
    Quote Originally Posted by My trike Sucks
    Did you put baffles in that tank so the fuel dont slosh around and foam? cause if you didnt that can give you as many problems as a fuel pump..lol
    not saying that is a bad idea, it is rather a good one, but when was the last time you seen baffles in a 350X tank, 250R, 200X, Tecate tank?
    1985 KXT 250
    84 KX cylinder
    sprock racing head
    +2" Miltech swingarm
    frame mounted Rad

    1983 250R
    DG head
    290cc Big Bore
    CT pipe
    85R front end
    +1" Miltech swingarm
    2+2 axle NOS NASA
    18x10x9 Hoosiers
    Reply With Quote Reply With Quote
