    another thing i ran into was i busted the take up nut while trying to press off the little gear on the end of the spindle.....i wanted to puke when i seen what i did.

    turns out beings this is an 87 year old lathe and different then most other south bend lathes i was on my own to find a replacment. so i went over HRE yet again and showed him what i did and what i need to do to make one.

    turn out he didnt have the 1 1/8x16 tap i needed (witch costs $55) so we decided to thread it on his lathe....keep in mind we never threaded on a lathe other then just messing around. turns out his threading chart for his lathe was NOT right at all...so we just kept messing with the levers till we got 16 threads per inch (took about an hour). he then handed me some 2'' round stock and said there you go...get to it....lol

    heres the busted nut and my first atempt. the take up nut is basicly a threaded coller that locks down with a screw.

    the second pic is my second atempt at makeing this and it fits perfect...i need to find a set of threading gears so i can do this stuff on my lathe.
    Attached Thumbnails Attached Thumbnails busted take up nut.JPG   take up nut.JPG
    80s......185 atc, Yamaha tri-moto 200, 85 200x with tons of work
    90s......89 Suzuki quad racer 250 (raced 250 A class for 6 years, late 90s.. custom framed 250x with long travel shocks and a built 350x motor.... built Honda 110
    00s...... chomeoly framed 350 RX with all the goodies (thanks to my bro)
    2012.....Replaced the 350x motor for a 444cc YZ426
    WWW.HREATV.COM

  2. #47
    Join Date
    Mar 2006
    Location
    PA
    --
    3,515
    i got the gear cover painted and put on today....i just need to get the brass tags put back on it now.

    i also got to start on a milling atatchment....my brother had this little cheap vise he was going to throw out so i took it and machined a peice that fits it nice and tight that i will somehow get to fit where the tool holder goes.
    Attached Thumbnails Attached Thumbnails lathe with gear door.JPG   dirty lathe.JPG   crapy vise apart.JPG   new vise peice.JPG   all vise parts.JPG
    80s......185 atc, Yamaha tri-moto 200, 85 200x with tons of work
    90s......89 Suzuki quad racer 250 (raced 250 A class for 6 years, late 90s.. custom framed 250x with long travel shocks and a built 350x motor.... built Honda 110
    00s...... chomeoly framed 350 RX with all the goodies (thanks to my bro)
    2012.....Replaced the 350x motor for a 444cc YZ426
    WWW.HREATV.COM

  3. #48
    Join Date
    Aug 2004
    Location
    Cedar City, Utah
    --
    474
    Thats too cool, I want one, so I dont have to bug the hell out of my freind and use his stuff all the time... I think he is starting to get sick of me. lol
    Great Job! HH

  4. #49
    Join Date
    Mar 2006
    Location
    PA
    --
    3,515
    thanks man, i realy got into this little project.

    i think HRE will be happy when i get this thing all set up too since im always using his stuff...lol
    80s......185 atc, Yamaha tri-moto 200, 85 200x with tons of work
    90s......89 Suzuki quad racer 250 (raced 250 A class for 6 years, late 90s.. custom framed 250x with long travel shocks and a built 350x motor.... built Honda 110
    00s...... chomeoly framed 350 RX with all the goodies (thanks to my bro)
    2012.....Replaced the 350x motor for a 444cc YZ426
    WWW.HREATV.COM

  5. #50
    Join Date
    Mar 2006
    Location
    PA
    --
    3,515
    well the brass tags are on so im calling it done. there will always be little things i might make for it but as far as the restore it's now done.

    the brass tags are suposed to be black with the raised parts showing brass so i polished them with 000 steel wool and painted them, then carefully scraped off the paint on the raised letters.

    i did not do all of the large threading tag since they seem to get beat up anyway and i didnt what to mess up the red S at the top of that tag.

    first pic is just a before pic of the little tag.
    Attached Thumbnails Attached Thumbnails lathe tag.JPG   new tag.JPG   new thread chart.JPG   gear door with tags.JPG
    80s......185 atc, Yamaha tri-moto 200, 85 200x with tons of work
    90s......89 Suzuki quad racer 250 (raced 250 A class for 6 years, late 90s.. custom framed 250x with long travel shocks and a built 350x motor.... built Honda 110
    00s...... chomeoly framed 350 RX with all the goodies (thanks to my bro)
    2012.....Replaced the 350x motor for a 444cc YZ426
    WWW.HREATV.COM

  6. #51
    Join Date
    Oct 2002
    Location
    Northeast
    --
    17,460
    Very nice!!

    Where did ya get that toolpost!

    Nice to have all the guards and covers - I have none and no tags on mine either
    All our government does is distract us while they steal from us, misspend our tax $ and ruin our country

  7. #52
    Join Date
    Mar 2006
    Location
    PA
    --
    3,515
    MSC, grizzly type places sell them.

    its a phase ll ( roman numeral for 2) its a joy to use these piston type quick change tool holders.

    MSC just had them on sale for $99 but normal price is about double that. i got lucky and talked the guy i got the lathe from into buying it a year ago so i got it with the deal for free....lol



    link to tool holder http://www.grizzly.com/products/Quic...10-Swing/G5689

    heres the tool kit i have http://www.grizzly.com/products/5-pc...Set-1-2-/G5640

    the inserts are cheesy but i will replace them with good ones
    Last edited by SWIGIN; 03-01-2009 at 08:06 PM.
    80s......185 atc, Yamaha tri-moto 200, 85 200x with tons of work
    90s......89 Suzuki quad racer 250 (raced 250 A class for 6 years, late 90s.. custom framed 250x with long travel shocks and a built 350x motor.... built Honda 110
    00s...... chomeoly framed 350 RX with all the goodies (thanks to my bro)
    2012.....Replaced the 350x motor for a 444cc YZ426
    WWW.HREATV.COM

  8. #53
    Join Date
    Aug 2005
    Location
    Lockport, NY
    --
    2,395
    There are guys that repop them tags wayne.

    Nice job.

    On a CNC there are no gears. Just code in what you want. LOL. I could have made you about 25 in 5 minutes. Ahh Technology...

  9. #54
    Join Date
    Mar 2006
    Location
    PA
    --
    3,515
    i seen guys who do the tags for $50 a pop.....mine look ok and it was all but free.
    80s......185 atc, Yamaha tri-moto 200, 85 200x with tons of work
    90s......89 Suzuki quad racer 250 (raced 250 A class for 6 years, late 90s.. custom framed 250x with long travel shocks and a built 350x motor.... built Honda 110
    00s...... chomeoly framed 350 RX with all the goodies (thanks to my bro)
    2012.....Replaced the 350x motor for a 444cc YZ426
    WWW.HREATV.COM

  10. #55
    Join Date
    Oct 2002
    Location
    Northeast
    --
    17,460
    ^ Yeah, ENCO just sent me a catalog with that post for 95$, I wasn't sure if that toolpost came with the deal or not. I'm sure you've been watching EBAY for a gear set, they can fetch quite a bit of cash........

    I will be selling my lathe this year. Although my present lathe is great for little collars and spacers etc etc. I do not have room for 2 lathes and I want one lathe with a quick change gear box that does it all. The big stuff, I'll have to farm out..... I also need a larger opening to slide things into the spindle and about 3' long working length would be perfect and fit in my shop well.

    Sad to say, just like 3 wheelers, I may part out my lathe..... I'll see if anyone wants to pay a grand for it as is, but I doubt it. Then the beds get sold for scrap - Ahhhh, the American way!

    So, if I decide to go that route, I'll sell you my gears if you don't find a set by then.

    I need and want a heavy ten and it has to get done soon, just like the TIG welder!!
    All our government does is distract us while they steal from us, misspend our tax $ and ruin our country

  11. #56
    Join Date
    Mar 2006
    Location
    PA
    --
    3,515
    please, please, PLEASE do not forget to let me know when you want to sell some parts off your lathe.

    back gear, change gears, tumbler gears...ect

    i hope you can sell it whole but if not let me know first.

    thanks
    80s......185 atc, Yamaha tri-moto 200, 85 200x with tons of work
    90s......89 Suzuki quad racer 250 (raced 250 A class for 6 years, late 90s.. custom framed 250x with long travel shocks and a built 350x motor.... built Honda 110
    00s...... chomeoly framed 350 RX with all the goodies (thanks to my bro)
    2012.....Replaced the 350x motor for a 444cc YZ426
    WWW.HREATV.COM

  12. #57
    Join Date
    Mar 2006
    Location
    PA
    --
    3,515
    my lathe also came with a new set of end mills 1/4-3/4'' 2 and 4 flute so i decided to give milling on a lathe a try.

    this is the first thing iv milled on a lathe but i have needed a dial holder for my spare dial indicator for years. in the first and third pic, the black end is what i made...it was a scrap hunk of 1 1/4'' round solid stock.



    i also made the aluminum pivit/hinge things needed to use a dial indicator and the rod was just 5/16 stainless that i threaded to fit into the lathe and to the milled holder end.
    Attached Thumbnails Attached Thumbnails milled dial end.JPG   dial mount hinges.JPG   small pic dial milled end.jpg
    Last edited by SWIGIN; 03-05-2009 at 12:26 AM.
    80s......185 atc, Yamaha tri-moto 200, 85 200x with tons of work
    90s......89 Suzuki quad racer 250 (raced 250 A class for 6 years, late 90s.. custom framed 250x with long travel shocks and a built 350x motor.... built Honda 110
    00s...... chomeoly framed 350 RX with all the goodies (thanks to my bro)
    2012.....Replaced the 350x motor for a 444cc YZ426
    WWW.HREATV.COM

  13. #58
    Join Date
    Oct 2002
    Location
    Northeast
    --
    17,460
    Hey SWIGIN, sorry about the delay..... I'm not much of a PM guy (ATCST@Verizon.net) works well though

    Honestly, I am not 100% sure I even HAVE a SB lathe?? It's so old that I believe the serial numbers were on the missing covers... That number on your casting, is that under the headstock or where is it exactly??

    Even my spindle is very odd. It is 1.75 - 8TPI and that isn't available, I had to have a backing plate machined but SB does not list that thread.

    I have been told it's an SB, and someone stated it was a 1928 based on a few features he pointed out (that info is long gone now...) I have pics somewhere of the castings that ran the pulley shaft, I sold it fro AWESOME$$ because I could build my own easier.

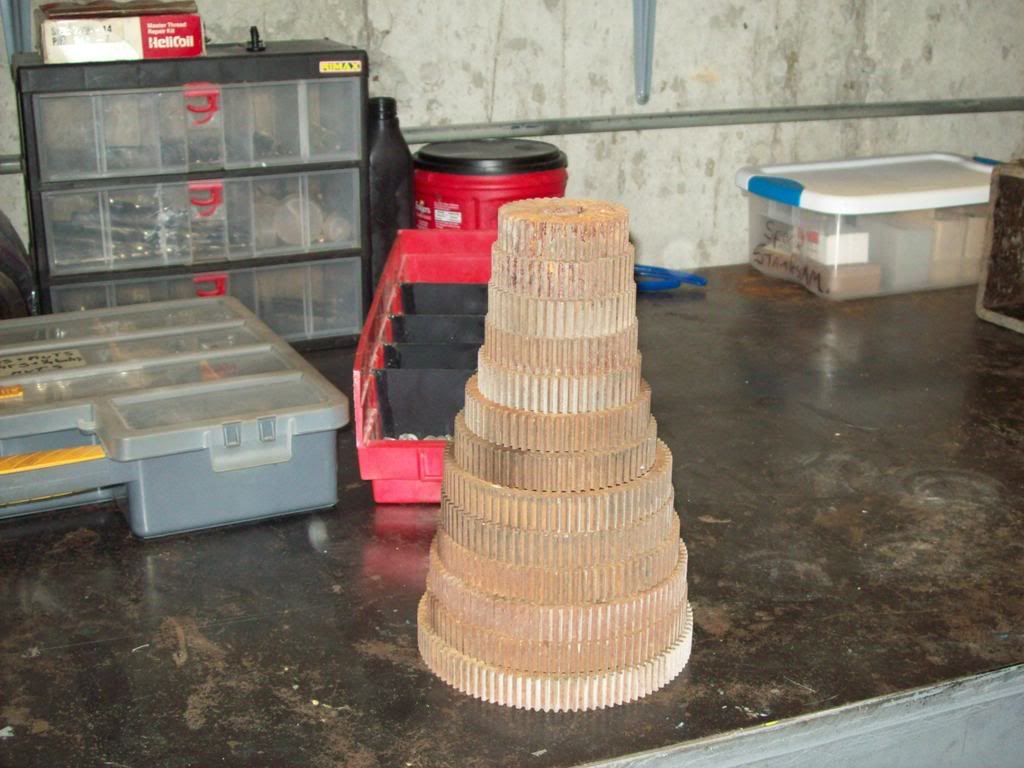

    Anyhow, here are the gears - they are .875 w/ a .1875 key. Again, maybe an odd ball.... BUT! These gears are mint, look never used and not one broken tooth so I'd assume that to the right person, they are worth some great bucks!! I've got a huge perfect 14" face plate for this lathe too....

    What website are you getting all the help on?? I gotta sign up and figure this thing out!

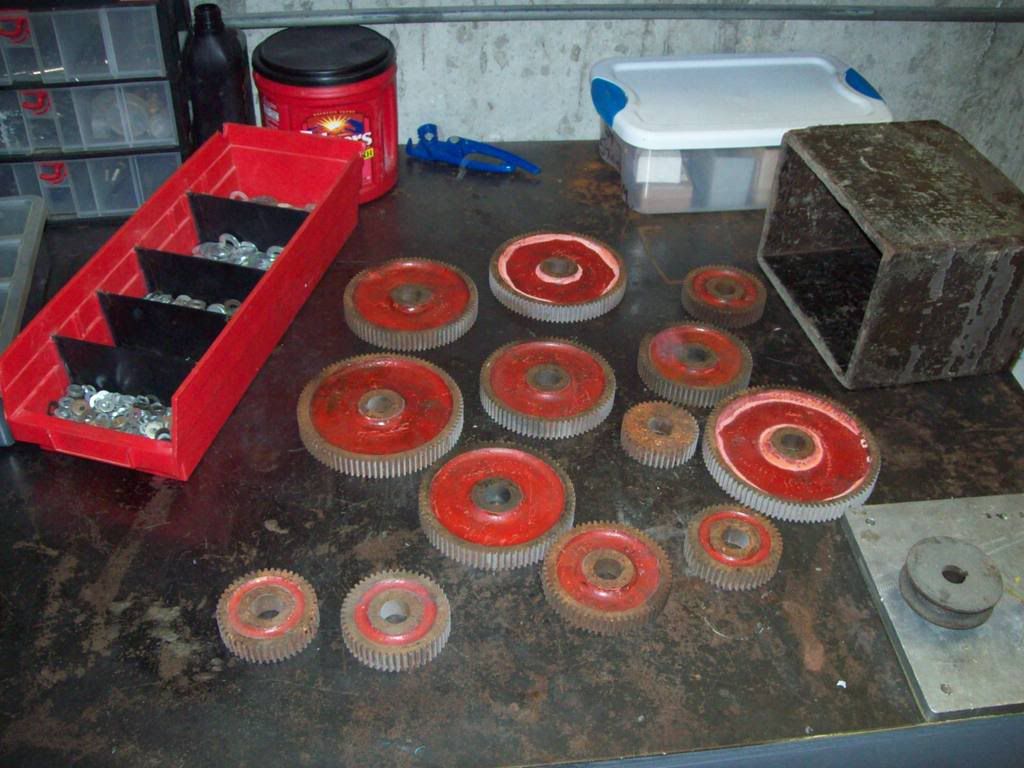

    GEARS:





    Again, it's a nice little lathe, but I need more. The biggest thing is the ID of the spindle. I have allot of stuff I need to slide thru a bit to hold it better....
    All our government does is distract us while they steal from us, misspend our tax $ and ruin our country

  14. #59
    Join Date
    Mar 2006
    Location
    PA
    --
    3,515
    all south bend lathes since 1910 have a serial number on the right end of the bed stamped right in the way closest to you. normally right where most guys leave the tail stock sit when not in use.

    those gears look wide and the ID of the holes dont seem to be south bend....you might be right as far as it not being a SB.

    post pics of it on practicalmachinist.com there's tons of old school machine freaks on that site.

    edit ...... the number is on top of the bed right under my tail stock.
    Attached Thumbnails Attached Thumbnails painted saddle &tail rear shot.JPG
    80s......185 atc, Yamaha tri-moto 200, 85 200x with tons of work
    90s......89 Suzuki quad racer 250 (raced 250 A class for 6 years, late 90s.. custom framed 250x with long travel shocks and a built 350x motor.... built Honda 110
    00s...... chomeoly framed 350 RX with all the goodies (thanks to my bro)
    2012.....Replaced the 350x motor for a 444cc YZ426
    WWW.HREATV.COM

  15. #60
    Join Date
    Mar 2006
    Location
    PA
    --
    3,515
    im quickly learning why they make live centers.....dead centers SUCK to work with. first thing i did when i got the lathe running was to turn all the dead centers i have so they are ready to use.

    they are already wasted after a few uses and they need constant oiling and ajusted as the work heats up from the friction.

    so yesterday i started on making a live center, getting the taper right is the tricky part so it seats tight in the tail stock. i'll be using a sealed ball bearing in the big end and make various tips that fit the ID of that bearing.

    this is made out of some kind of real hard steel thats bin floating around the garage for years and it turns horrible but it should last.
    Attached Thumbnails Attached Thumbnails P1010001.JPG
    80s......185 atc, Yamaha tri-moto 200, 85 200x with tons of work
    90s......89 Suzuki quad racer 250 (raced 250 A class for 6 years, late 90s.. custom framed 250x with long travel shocks and a built 350x motor.... built Honda 110
    00s...... chomeoly framed 350 RX with all the goodies (thanks to my bro)
    2012.....Replaced the 350x motor for a 444cc YZ426
    WWW.HREATV.COM
