TUSK heel guards mounted on a 350X and gussets too!!

[Dirtcrasher]

I finally finished this, the pics aren't the best and I have to order some SS hardware for the whole SHABANG!

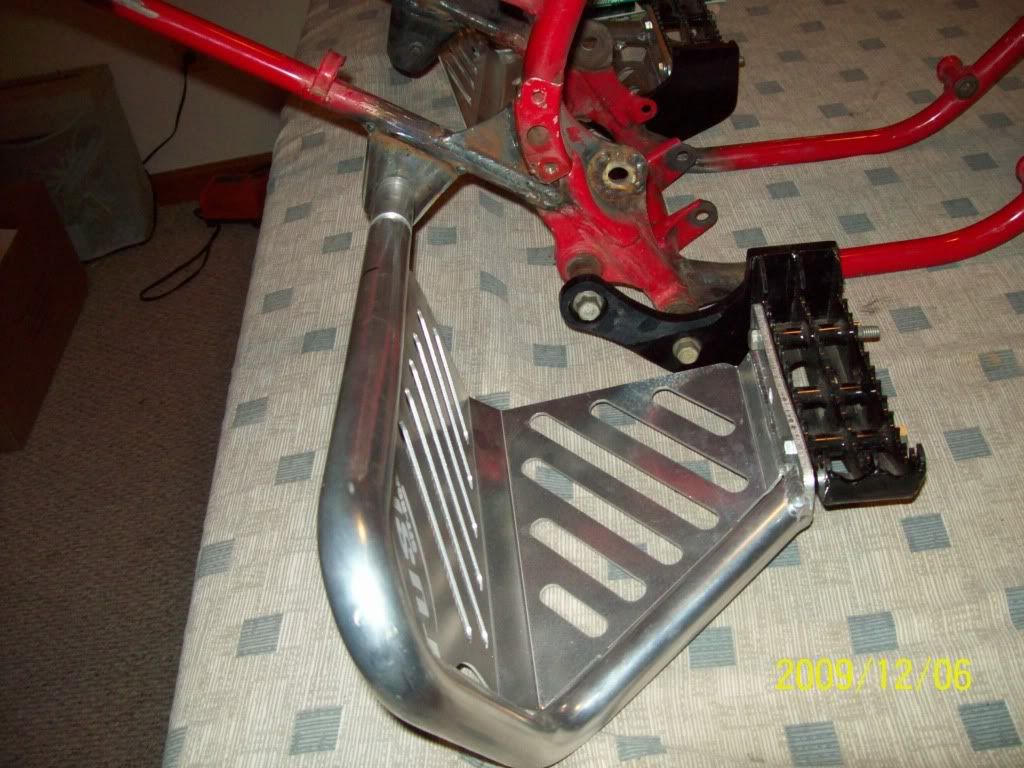

I believe HRE made the "death" footpegs and IDK what model the TUSK guards are for but I chopped off all there mounts and made some in my lathe so they would be uiniform and appear like they were meant to be there. I don't have a TIG and the owner knows he'll have to get that portion fitted but I have the rest down and done. 5 minutes with a good Tigf welding guy for 6061 aluminum and he's golden

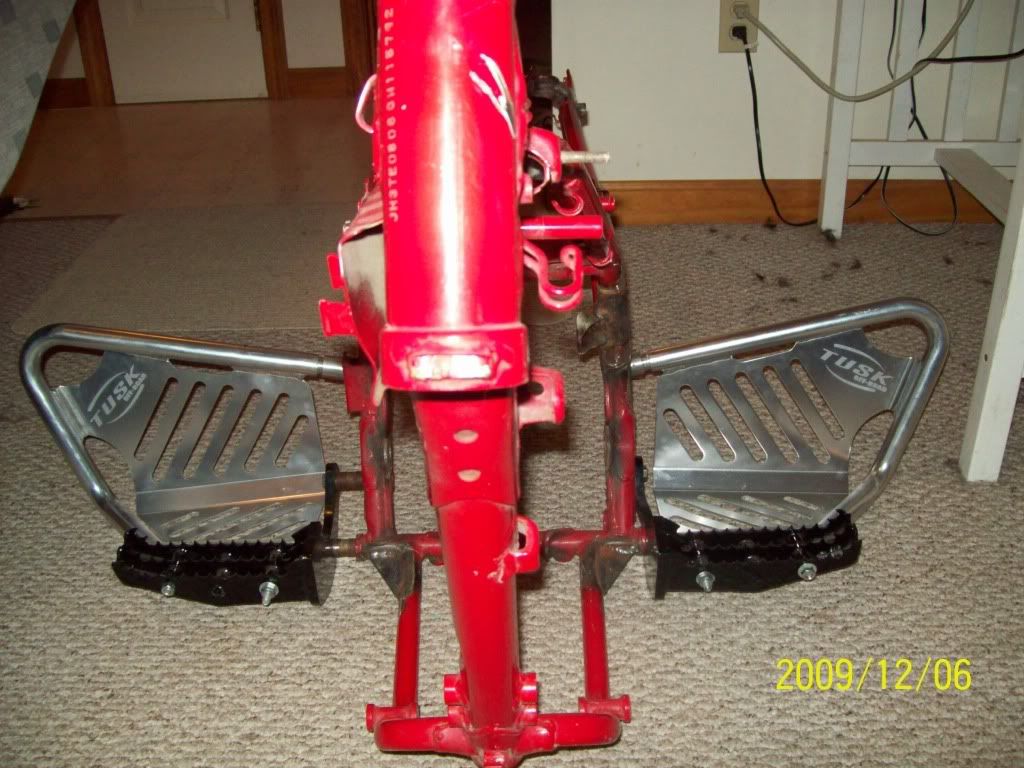

Came out very well with the HRE pegs, I like them myself and they look like Honda put them both on there.

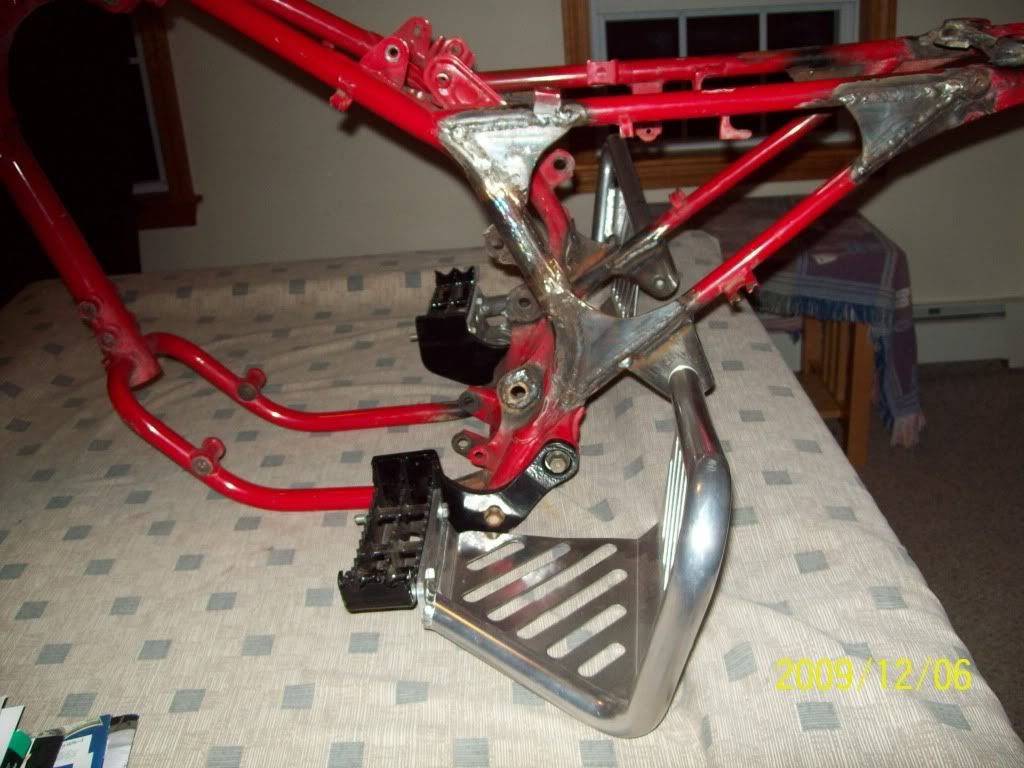

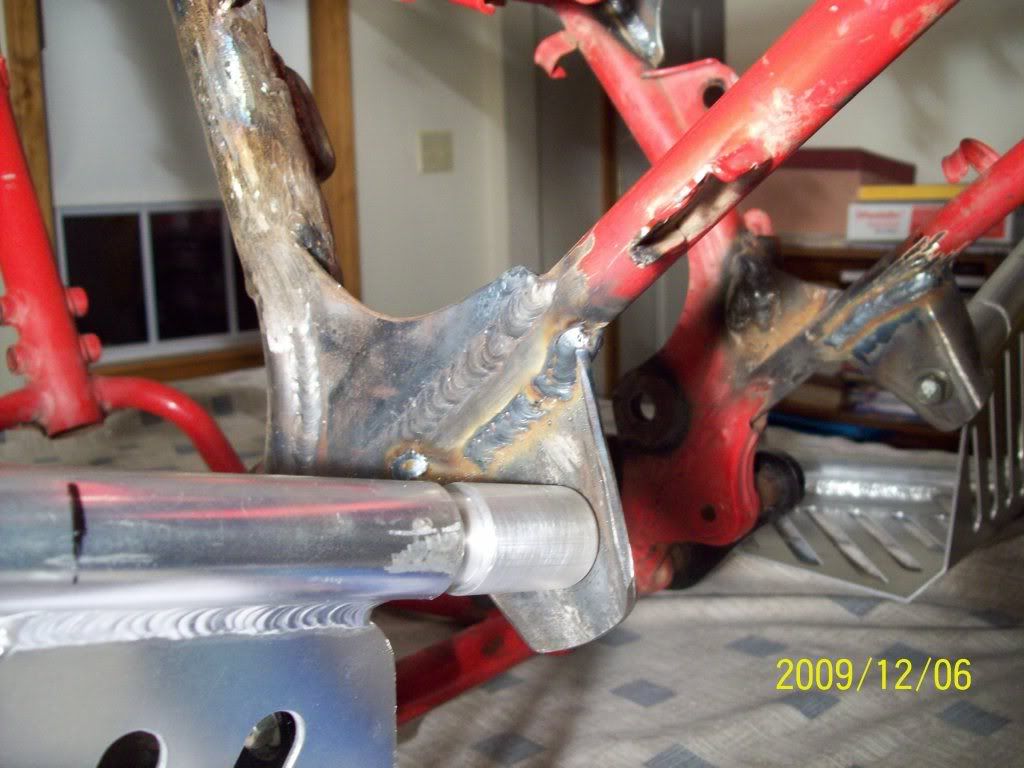

I had to 30/45 degree the flat mounts that I custom made so they would have some strength.....

I could have adapted the stock flat chinsey brackets (they were completely different) that came with them (not sure what he ordered, maybe YZF?? or 450R??) but I cut all that crap off and made my own. That way if he ruins/bends/breaks them or takes them off there is a simple mount on the left and right frame rail that will look OEM once blasted and powder coated.

Pics kinda stink, friggen cats love to see whats up so it is what it is. But, I'm very happy with the end results and I'm SURE they will be super strong!! Just don't slip off that footpeg or get ready for some serious stitches!!

The owner can reply if he wishes but it's not my place to name him!

PICS, ENJOY!!:

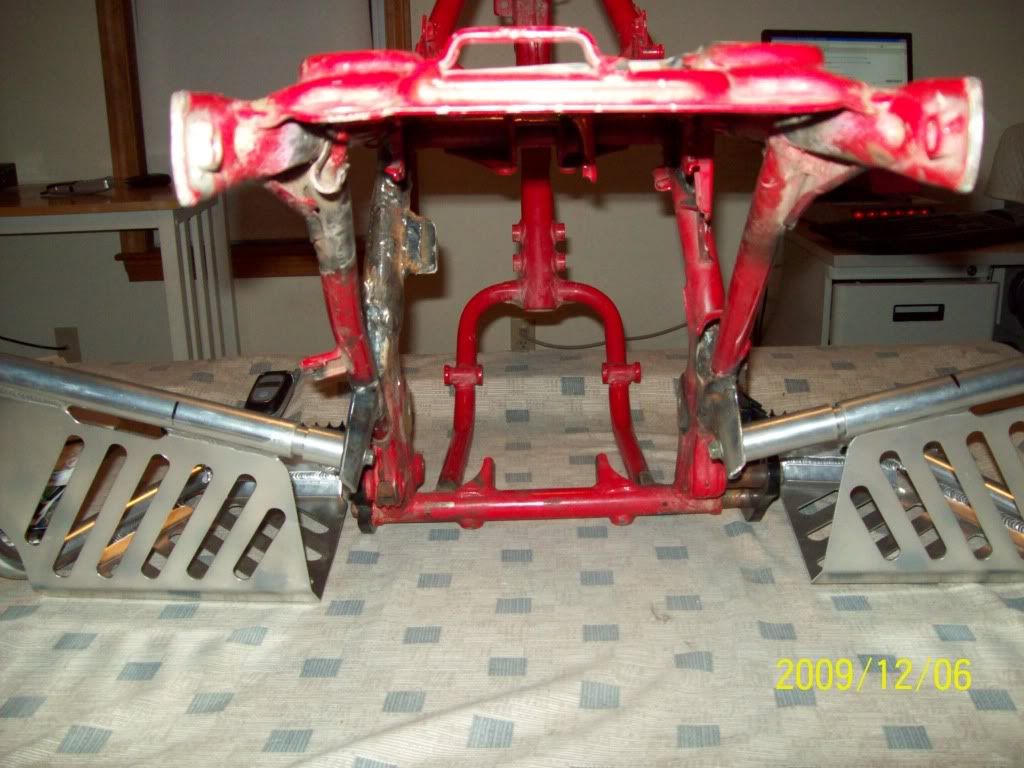

I also gusseted (more than ever before) and wrapped the whole frame so it ought to be very nasty!! All these projects give me ideas for my next 350X build with one of my crate motors
