  • Kawasaki KLT160

    by
    Billy Golightly
    Published on 12-27-2009 07:00 PM
    3 Comments Comments
    Wiring diagrams

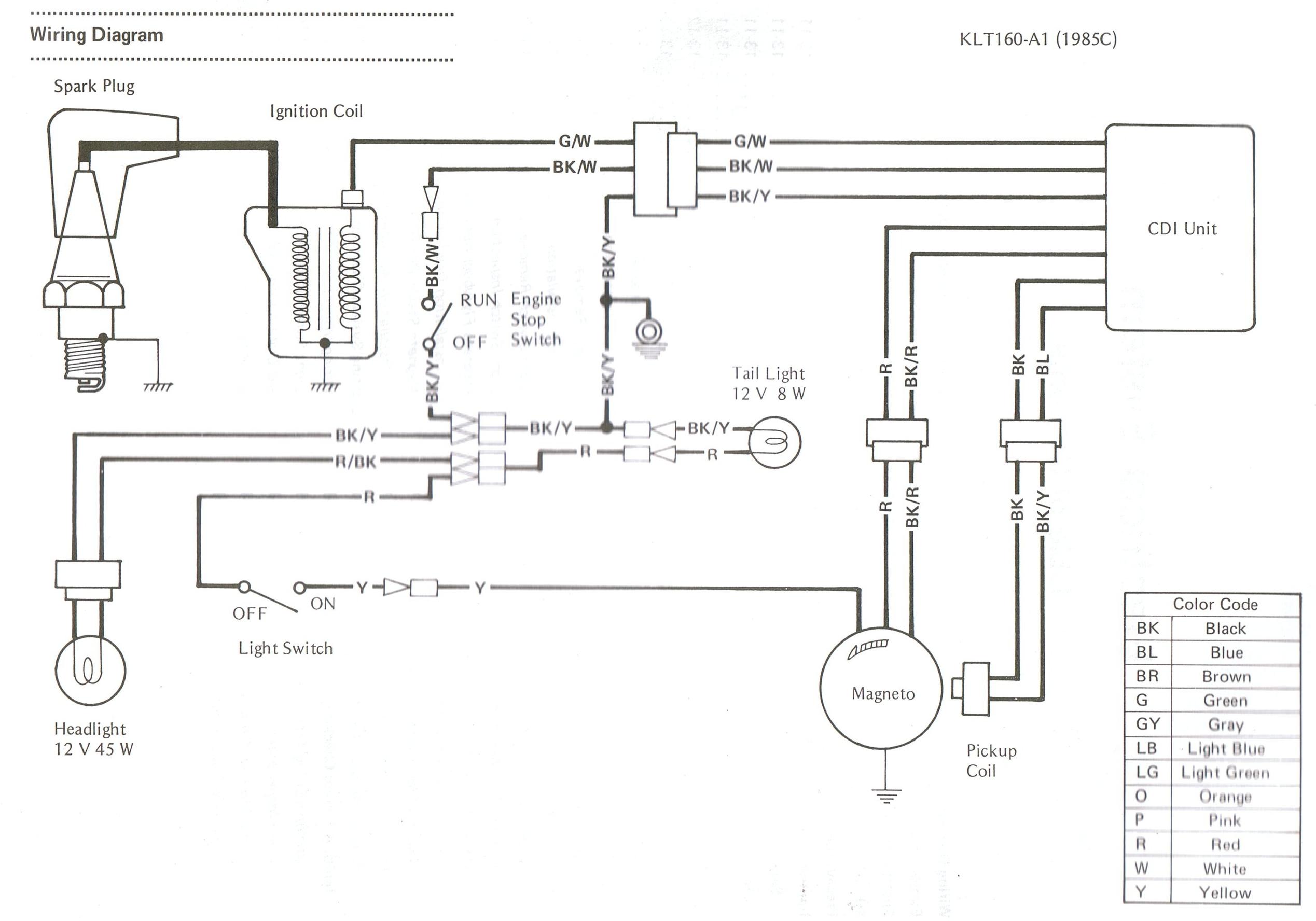

    KLT160 A1 1985




    NOTE:     This section is currently incomplete. If you have other wiring diagrams for this model not currently listed here and would like to contribute, please use the "Contact Us" link at the bottom of the page.
    1. Categories:
    2. KLT160
    Comments 3 Comments
    1. scallop face's Avatar
      scallop face - 10-20-2011, 09:39 AM
      Thank You for the Post. I just Bought a klt 160 yesterday for 75 dollars, that had been in a barn for decades.....
    1. yellowoctupus's Avatar
      yellowoctupus - 06-12-2016, 11:25 PM
      KLT200 Wiring Diagram



      Full size: http://circuitswiring.com/circuit-di...aki-klt200.jpg
    1. rustywheeler's Avatar
      rustywheeler - 11-12-2020, 11:48 AM
      Anyone have wiring diagram for a 1984 klt250c I have no spark but engine cranks over and I have a multi meter to test all of the engine electrical. Thanks
